Copper Wire Mesh

banner
Product Details

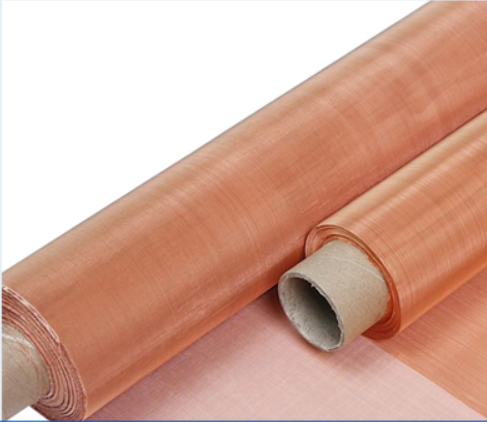

Copper Wire Mesh


Material:Brass wire, red copper wire, phosphor bronze wire, tinned copper wire
Mesh Count:
Brass wire mesh:2-250 mesh;
Red copper wire mesh:2-250mesh;
Phosphor bronze wire mesh:2-350mesh;
Tinned copper wire mesh:2-100mesh
Woven Type:Plain weave or twill weave
Characteristics:Good conductivity, heat-transfer properties, non-magnetic,
corrosion resistant, low ductility and wear resistant.
Application:Used in electromagnetic shielding, screening of various granular
powder, porcelain clay, glass, chinaware printing, gas and liquid filtering etc.

Copper wire mesh is also called red copper mesh. The purity of copper is 99.8%.
The aperture of copper wire mesh can range from 2 meshes to 100 meshes, which
can suit for different requirements Copper wire Specifications 0.914 m X30 m, 1 m
X30 m, 1.22 m X30 m.

Mesh Size Details:

MeshAperture(MM)Wire Diameter

Effective (%)

Weight (KG/M2)

Mesh 3

6.272.2627

Mesh 5

4.360.711761.6
Mesh 63.520.711631.6
Mesh 82.50.559671.5
Mesh 102.080.46671.1
Mesh 121.740.457681.4
Mesh 141.360.46571.4
Mesh 161.210.376551.2
Mesh 181.10.315600.85
Mesh 200.950.315580.95
Mesh 300.670.274550.85
Mesh 400.440.152460.58
Mesh 500.360.152500.45
Mesh 600.30.122500.45
Mesh 800.1980.12440.58
Mesh 1000.1540.1370.5
Mesh 1200.130.081400.39
Mesh 1500.0970.61320.3
Mesh 2000.0860.041460.17
Mesh 3000.0540.031400.15
Mesh 3500.0420.031360.16
