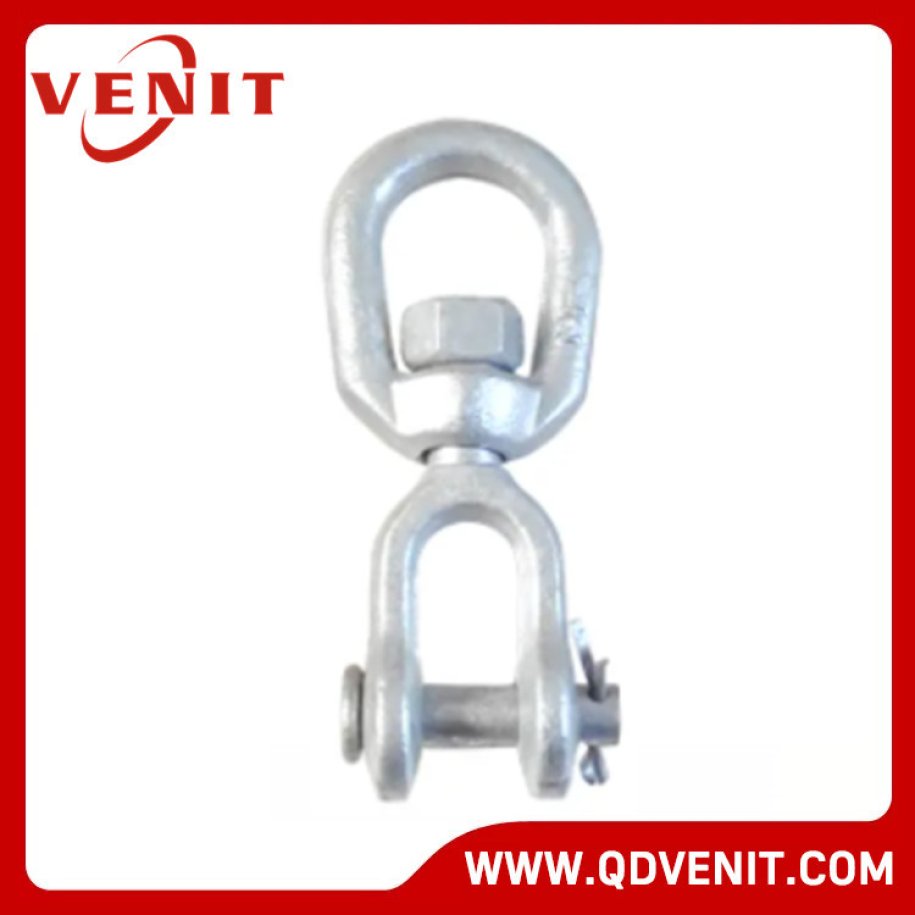

Hot Dip Galvanized G403 Swivel
Brand: VENIT/OEM
If you want to equip your Marine equipment with the best hardware, the hot dip galvanized G403 rotary is the perfect solution.
Product Details
Hot Dip Galvanized G403 Swivel

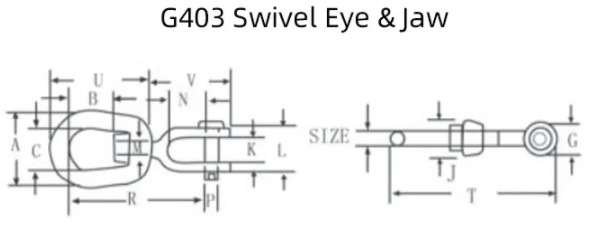

| Part NO. | Size | Working Load Limit | Weight each | Dimensions(in) | ||||||||||||
| (in.) | (lbs.)* | (lbs.) | A | B | C | G | J | K | L | M | N | P | R | U | V | |
| G403-1/4 | 1/4” | 850 | 0.21 | 1.25 | 0.69 | 0.75 | 0.69 | 0.69 | 0.47 | 1.03 | 0.31 | 0.88 | 0.25 | 2.63 | 1.69 | 1.69 |
| G403-5/16 | 5/16” | 1250 | 0.34 | 1.63 | 0.81 | 1 | 0.81 | 0.81 | 0.5 | 1.13 | 0.38 | 0.88 | 0.31 | 2.94 | 2.06 | 1.81 |
| G403-3/8 | 3/8” | 2250 | 0.66 | 2 | 0.94 | 1.25 | 1 | 1 | 0.63 | 1.41 | 0.5 | 1.06 | 0.38 | 3.63 | 2.5 | 2.25 |
| G403-1/2 | 1/2″ | 3600 | 1.34 | 2.5 | 1.31 | 1.5 | 1.31 | 1.31 | 0.75 | 1.75 | 0.63 | 1.31 | 0.5 | 4.5 | 3.19 | 2.88 |
| G403-5/8 | 5/8″ | 5200 | 2.48 | 3 | 1.56 | 1.75 | 1.63 | 1.5 | 0.94 | 2.06 | 0.75 | 1.5 | 0.63 | 5.31 | 3.88 | 3.44 |
| G403-3/4 | 3/4″ | 7200 | 3.88 | 3.5 | 1.75 | 2 | 1.88 | 1.88 | 1.13 | 2.53 | 0.88 | 1.75 | 0.75 | 6.06 | 4.31 | 4 |
| G403-7/8 | 7/8″ | 10000 | 5.87 | 4 | 2.06 | 2.25 | 2.13 | 2.13 | 1.19 | 2.75 | 1 | 2.06 | 0.88 | 7 | 5 | 4.53 |
| G403-1 | 1″ | 12500 | 9.84 | 4.5 | 2.31 | 2.5 | 2.63 | 2.38 | 1.75 | 3.72 | 1.13 | 2.81 | 1.13 | 8.56 | 5.75 | 5.94 |
| G403-1-1/4 | 1-1/4″ | 18000 | 15.75 | 5.69 | 2.69 | 3.13 | 3.13 | 3 | 2.06 | 4.31 | 1.63 | 2.81 | 1.38 | 9.75 | 7.06 | 6.38 |
| G403-1-1/2 | 1-1/2″ | 45200 | 54.75 | 7 | 3.88 | 4 | 5.63 | 4 | 2.88 | 6 | 2.25 | 4.44 | 2.25 | 14.25 | 10 | 10.84 |
