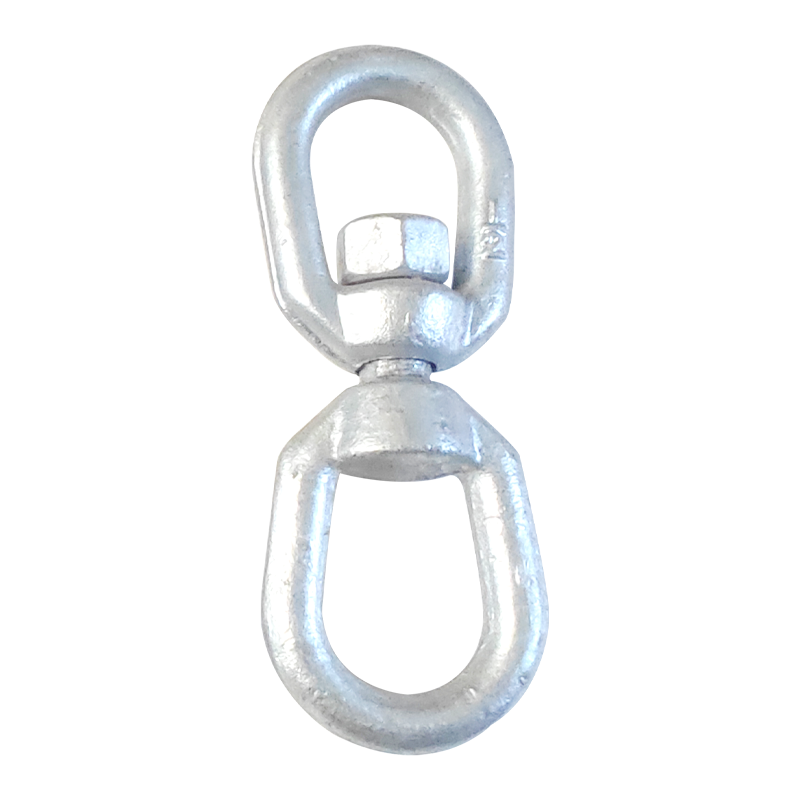

Hot Dip Galvanized G402 Swivel
Brand: VENIT/OEM
The G402 Swivel is engineered to provide smooth and seamless 360-degree rotation, allowing for versatile and efficient movement in any direction.
Product Details
Hot Dip Galvanized G402 Swivel
| Part No. | Size | W.L.L. | Weight each | Dimensions(in) | |||||||
| (in.) | (lbs.)* | (lbs.) | A | B | C | D | J | M | R | S | |
| G402-C45-1/4 | 1/4 | 850 | 0.21 | 1.25 | 0.69 | 0.75 | 1.06 | 0.69 | 0.31 | 2.94 | 1.69 |
| G402-C45-5/16 | 5/16 | 1250 | 0.39 | 1.63 | 0.81 | 1 | 1.25 | 0.81 | 0.38 | 3.56 | 2.06 |
| G402-C45-3/8 | 3/8 | 2250 | 0.71 | 2 | 0.94 | 1.25 | 1.5 | 1 | 0.5 | 4.31 | 2.5 |
| G402-C45-1/2 | 1/2 | 3600 | 1.32 | 2.5 | 1.31 | 1.5 | 2 | 1.31 | 0.63 | 5.44 | 3.19 |
| G402-C45-5/8 | 5/8 | 5200 | 2.49 | 3 | 1.56 | 1.75 | 2.38 | 1.5 | 0.75 | 6.56 | 3.88 |
| G402-C45-3/4 | 3/4 | 7200 | 4.02 | 3.5 | 1.75 | 2 | 2.63 | 1.88 | 0.88 | 7.19 | 4.31 |
| G402-C45-7/8 | 7/8 | 10000 | 6.25 | 4 | 2.06 | 2.25 | 3.06 | 2.13 | 1 | 8.38 | 5 |
| G402-C45-1 | 1 | 12500 | 8.95 | 4.5 | 2.31 | 2.5 | 3.5 | 2.38 | 1.13 | 9.63 | 5.75 |
| G402-C45-1-1/4 | 1-1/4 | 18000 | 16.37 | 5.63 | 2.69 | 3.13 | 3.69 | 3 | 1.5 | 11.44 | 6.75 |
| G402-C45-1-1/2 | 1-1/2 | 45200 | 45.79 | 7.09 | 3.88 | 4.09 | 3.88 | 3.75 | 2.25 | 16.69 | 9.91 |
