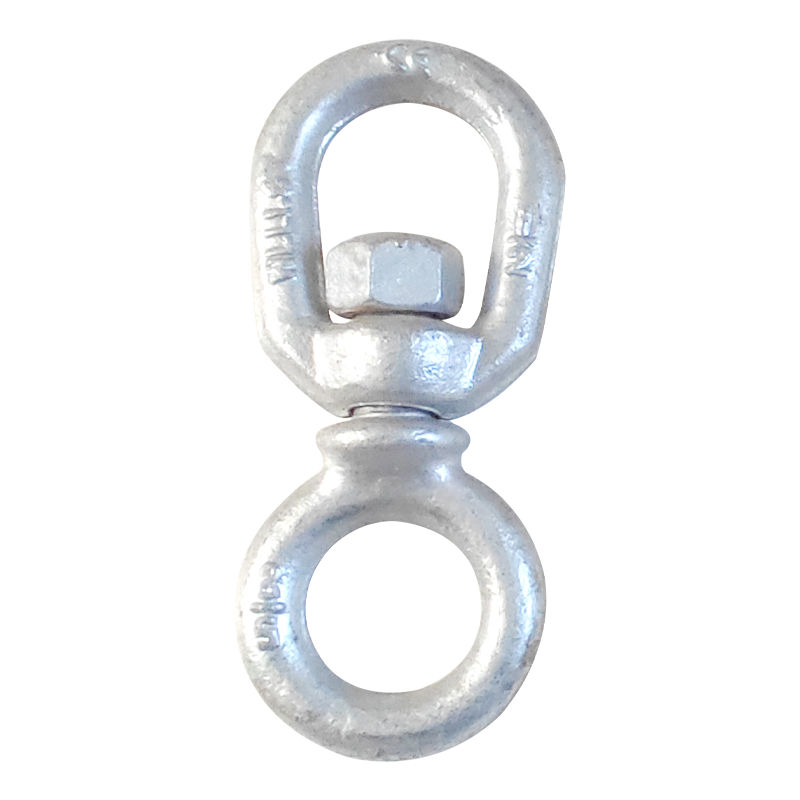

Hot Dip Galvanized G401 Swivel
Brand: VENIT/OEM
The Hot Dip Galvanized finish creates a protective barrier against rust and corrosion, extending the product's lifespan.
Product Details
Hot Dip Galvanized G401 Swivel

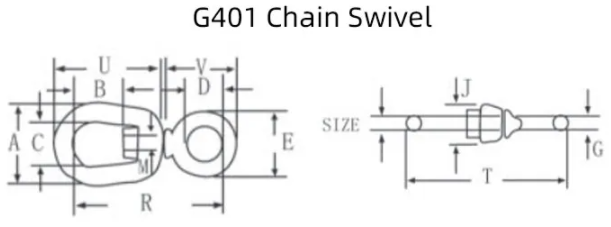

| Part No. | Size | W.L.L. | Weight | Dimensions (in.) | ||||||||||
| (in.) | (lbs.) | (lbs.) | A | B | C | D | E | G | J | M | R | U | V | |
| G401-C45-1/4 | 1/4 | 850 | 0.13 | 1.25 | 0.69 | 0.75 | 0.62 | 1.12 | 0.25 | 0.69 | 0.31 | 2.25 | 1.69 | 1.25 |
| G401-C45-5/16 | 5/16 | 1250 | 0.25 | 1.63 | 0.81 | 1 | 0.75 | 1.38 | 0.31 | 0.81 | 0.38 | 2.72 | 2.06 | 1.47 |
| G401-C45-3/8 | 3/8 | 2250 | 0.54 | 2 | 0.94 | 1.25 | 1 | 1.75 | 0.38 | 1 | 0.5 | 3.44 | 2.5 | 1.88 |
| G401-C45-1/2 | 1/2 | 3600 | 1.12 | 2.5 | 1.31 | 1.5 | 1.25 | 2.25 | 0.5 | 1.31 | 0.63 | 4.25 | 3.19 | 2.44 |
| G401-C45-5/8 | 5/8 | 5200 | 2.09 | 3 | 1.56 | 1.75 | 1.5 | 2.75 | 0.62 | 1.5 | 0.75 | 5.13 | 3.88 | 2.94 |
| G401-C45-3/4 | 3/4 | 7200 | 3.09 | 3.5 | 1.75 | 2 | 1.75 | 3.25 | 0.75 | 1.88 | 0.88 | 5.78 | 4.94 | 3.46 |
