Product Details

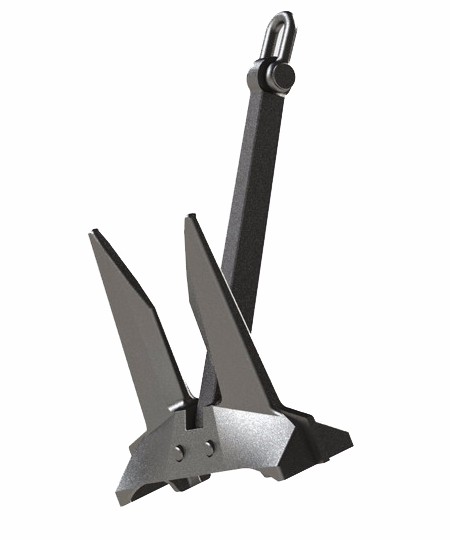

HHP AC-14 Anchor

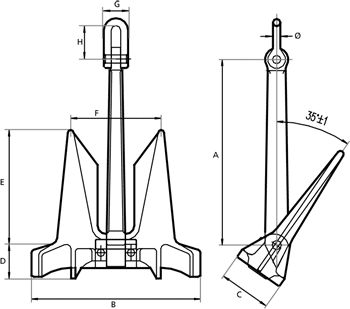

| Weight | A | B | C | D | E | F | G | H | ø |
| Kg | mm | mm | mm | mm | mm | mm | mm | mm | mm |
| 50 | 590 | 529 | 164 | 107 | 359 | 283 | 80 | 98 | 22 |
| 75 | 677 | 605 | 188 | 122 | 411 | 324 | 88 | 115 | 24 |
| 90 | 718 | 643 | 199 | 130 | 437 | 344 | - | - | - |
| 100 | 745 | 666 | 207 | 135 | 452 | 357 | 88 | 115 | 24 |
| 135 | 821 | 737 | 228 | 143 | 500 | 394 | 100 | 130 | 28 |
| 180 | 904 | 811 | 251 | 157 | 550 | 434 | - | - | - |
| 225 | 974 | 874 | 270 | 169 | 593 | 468 | 125 | 160 | 36 |
| 270 | 1006 | 910 | 278 | 185 | 617 | 488 | - | - | - |
| 315 | 1072 | 962 | 297 | 195 | 653 | 515 | 139 | 175 | 40 |
| 340 | 1109 | 995 | 307 | 192 | 675 | 533 | - | - | - |
| 360 | 1109 | 995 | 307 | 192 | 675 | 553 | 139 | 175 | 40 |
| 430 | 1194 | 1071 | 331 | 206 | 727 | 574 | 152 | 192 | 45 |
| 460 | 1227 | 1101 | 340 | 212 | 747 | 590 | 167 | 215 | 48 |
| 495 | 1227 | 1101 | 340 | 212 | 747 | 590 | 167 | 215 | 48 |
| 544 | 1317 | 1172 | 363 | 237 | 795 | 627 | 167 | 215 | 48 |
| 585 | 1360 | 1121 | 378 | 236 | 828 | 654 | 167 | 215 | 48 |
| 675 | 1398 | 1254 | 387 | 242 | 851 | 672 | 175 | 235 | 50 |
| 750 | 1483 | 1304 | 404 | 264 | 885 | 698 | 175 | 235 | 50 |
| 765 | 1483 | 1267 | 391 | 244 | 860 | 679 | - | - | - |
| 855 | 1520 | 1363 | 423 | 267 | 925 | 729 | 183 | 255 | 50 |
| 910 | 1540 | 1385 | 427 | 270 | 938 | 740 | - | - | - |
| 970 | 1590 | 1425 | 440 | 275 | 968 | 764 | - | - | - |
| 1000 | 1590 | 1425 | 440 | 275 | 968 | 764 | 183 | 255 | 50 |
| 1080 | 1590 | 1425 | 440 | 275 | 968 | 764 | 183 | 255 | 50 |
| 1140 | 1660 | 1490 | 460 | 287 | 1011 | 798 | - | - | - |
| 1195 | 1660 | 1490 | 465 | 287 | 1011 | 798 | 216 | 280 | 62 |
| 1305 | 1761 | 1580 | 488 | 305 | 1072 | 846 | 216 | 280 | 62 |
| 1360 | 1761 | 1580 | 488 | 305 | 1072 | 846 | - | - | - |
| 1440 | 1795 | 1610 | 497 | 311 | 1093 | 862 | 216 | 280 | 62 |
| 1575 | 1855 | 1665 | 514 | 321 | 1130 | 892 | 238 | 310 | 68 |
| 1710 | 1891 | 1697 | 524 | 327 | 1152 | 910 | - | - | - |
| 1820 | 1940 | 1741 | 538 | 336 | 1182 | 933 | 238 | 310 | 68 |
| 1845 | 1940 | 1741 | 538 | 336 | 1182 | 933 | 238 | 310 | 68 |
| 1980 | 1940 | 1741 | 538 | 336 | 1182 | 933 | 238 | 310 | 68 |
| 2040 | 2016 | 1809 | 559 | 349 | 1227 | 969 | - | - | - |
| 2140 | 2016 | 1809 | 559 | 349 | 1227 | 969 | - | - | - |
| 2270 | 2089 | 1874 | 579 | 362 | 1272 | 1004 | - | - | - |
| 2295 | 2089 | 1874 | 579 | 362 | 1272 | 1004 | - | - | - |
| 2475 | 2150 | 1929 | 596 | 373 | 1309 | 1033 | 260 | 340 | 74 |
| 2655 | 2218 | 1991 | 615 | 384 | 1351 | 1066 | - | - | - |
| 2720 | 2218 | 1991 | 615 | 384 | 1351 | 1066 | - | - | - |
| 2835 | 2249 | 2018 | 623 | 390 | 1370 | 1081 | - | - | - |
| 3040 | 2302 | 2066 | 638 | 399 | 1402 | 1107 | 284 | 360 | 82 |
| 3240 | 2352 | 2110 | 652 | 407 | 1432 | 1130 | 287 | 380 | 82 |
| 3445 | 2400 | 2154 | 665 | 415 | 1462 | 1154 | - | - | - |
| 3670 | 2451 | 2200 | 680 | 424 | 1493 | 1178 | - | - | - |
| 3940 | 2510 | 2252 | 696 | 434 | 1529 | 1207 | 310 | 385 | 90 |
| 4210 | 2566 | 2303 | 711 | 444 | 1563 | 1234 | - | - | - |
| 4500 | 2624 | 2355 | 727 | 454 | 1598 | 1261 | 316 | 410 | 90 |
| 4840 | 2688 | 2412 | 745 | 465 | 1637 | 1292 | 346 | 415 | 100 |
| 5175 | 2749 | 2467 | 762 | 476 | 1674 | 1321 | 350 | 450 | 100 |
| 5515 | 2808 | 2520 | 778 | 486 | 1710 | 1350 | - | - | - |
| 5575 | 2808 | 2520 | 778 | 486 | 1710 | 1350 | - | - | - |
| 5850 | 2864 | 2570 | 794 | 496 | 1744 | 1376 | 350 | 450 | 100 |
| 6225 | 2923 | 2623 | 810 | 506 | 1780 | 1405 | 370 | 480 | 110 |
| 6525 | 2970 | 2665 | 823 | 514 | 1808 | 1428 | - | - | - |
| 6600 | 2981 | 2675 | 827 | 516 | 1815 | 1433 | - | - | - |
| 6975 | 3042 | 2730 | 843 | 527 | 1853 | 1462 | 380 | 500 | 110 |
| 7015 | 3042 | 2730 | 843 | 527 | 1853 | 1462 | - | - | - |
| 7425 | 3100 | 2782 | 859 | 537 | 1888 | 1490 | - | - | - |
| 7875 | 3162 | 2837 | 876 | 547 | 1925 | 1520 | 380 | 500 | 110 |
| 8325 | 3221 | 2890 | 893 | 558 | 1961 | 1548 | 400 | 540 | 117 |
| 8775 | 3278 | 2942 | 909 | 567 | 1996 | 1576 | 400 | 540 | 117 |
| 9225 | 3333 | 2991 | 924 | 577 | 2030 | 1602 | - | - | - |
| 9675 | 3386 | 3039 | 939 | 586 | 2062 | 1628 | 421 | 580 | 124 |
| 10125 | 3438 | 3085 | 953 | 595 | 2094 | 1653 | - | - | - |
| 10575 | 3488 | 3130 | 967 | 604 | 2124 | 1677 | - | - | - |
| 10695 | 3501 | 3141 | 970 | 606 | 2132 | 1683 | - | - | - |
| 11025 | 3537 | 3174 | 981 | 612 | 2154 | 1700 | - | - | - |
| 11250 | 3561 | 3196 | 987 | 616 | 2169 | 1712 | - | - | - |
| 11550 | 3592 | 3224 | 996 | 622 | 2188 | 1727 | 452 | 620 | 135 |
| 11850 | 3623 | 3251 | 1004 | 627 | 2206 | 1742 | - | - | - |
| 12075 | 3646 | 3272 | 1011 | 631 | 2220 | 1753 | 452 | 620 | 135 |
| 12525 | 3691 | 3312 | 1023 | 639 | 2248 | 1774 | - | - | - |
| 12675 | 3705 | 3325 | 1027 | 641 | 2256 | 1781 | 468 | 648 | 148 |
| 13200 | 3756 | 3370 | 1041 | 650 | 2287 | 1805 | - | - | - |
| 13350 | 3770 | 3383 | 1045 | 653 | 2296 | 1812 | - | - | - |
| 13875 | 3819 | 3426 | 1059 | 661 | 2326 | 1836 | - | - | - |
| 14100 | 3839 | 3445 | 1064 | 665 | 2338 | 1846 | - | - | - |
| 15000 | 3919 | 3517 | 1086 | 678 | 2387 | 1884 | - | - | - |
| 16125 | 4015 | 3603 | 1113 | 695 | 2445 | 1930 | - | - | - |
| 17250 | 4106 | 3685 | 1138 | 711 | 2501 | 1974 | - | - | - |
| 18375 | 4194 | 3763 | 1163 | 726 | 2554 | 2016 | - | - | - |
| 19500 | 4278 | 3839 | 1186 | 740 | 2605 | 2056 | 534 | 730 | 160 |
| 21750 | 4366 | 3956 | 1210 | 800 | 2685 | 2132 | 611 | 820 | 185 |
| 24750 | 2150 | 1929 | 596 | 373 | 1309 | 1033 | 260 | 340 | 740 |
