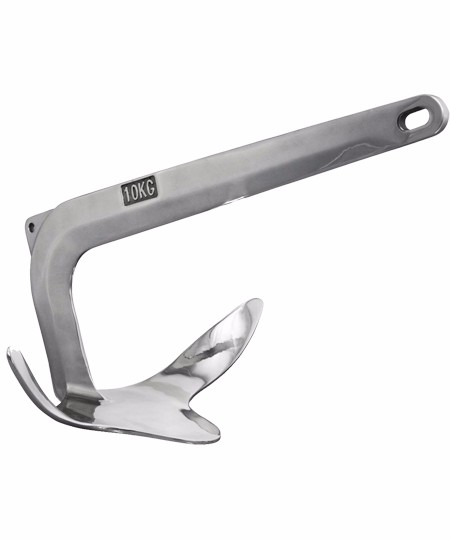

Bruce Anchor
Constructed of high-grade steel cast in a single piece for superior strength, this anchor delivers exceptional holding power in most seabed and remains stable under varying tide and wind conditions. Sets and resets quickly and roll stabilization prevents breakout caused by veering. Stows easily on a bow roller.
Style: Bruce-style claw
Surface treatment: Hot Dip Galvanized
Application: Most bottom types
Pros: Holds in most bottom types and under varying conditions; sets quickly and stows easily on a bow roller.

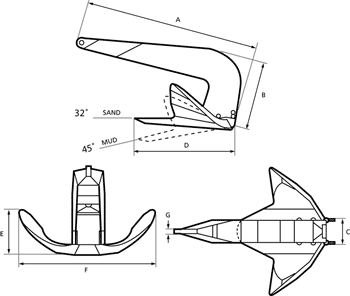

Weight | A | B | C | D | E | F | G | H |
Kg | mm | mm | mm | mm | mm | mm | mm | mm |
114 | 1228 | 487 | 197 | 699 | 313 | 935 | 30 | 25 |
184 | 1500 | 595 | 241 | 854 | 383 | 1142 | 35 | 27 |
294 | 1765 | 700 | 283 | 1005 | 450 | 1344 | 40 | 30 |
439 | 2055 | 815 | 330 | 1170 | 504 | 1564 | 40 | 30 |
856 | 2435 | 965 | 391 | 1386 | 621 | 1854 | 55 | 43 |
3000 | 3843 | 1524 | 616 | 2187 | 980 | 2926 | 95 | 74 |
5000 | 4535 | 1798 | 727 | 2582 | 1156 | 3452 | 115 | 89 |
9000 | 5525 | 2191 | 886 | 3146 | 1409 | 4206 | 155 | 177 |
12000 | 6063 | 2404 | 972 | 3452 | 1546 | 4616 | 155 | 135 |
15000 | 6705 | 2659 | 1076 | 3816 | 1710 | 5105 | 155 | 135 |
18000 | 6984 | 2769 | 1120 | 3977 | 1781 | 5318 | 155 | 135 |
