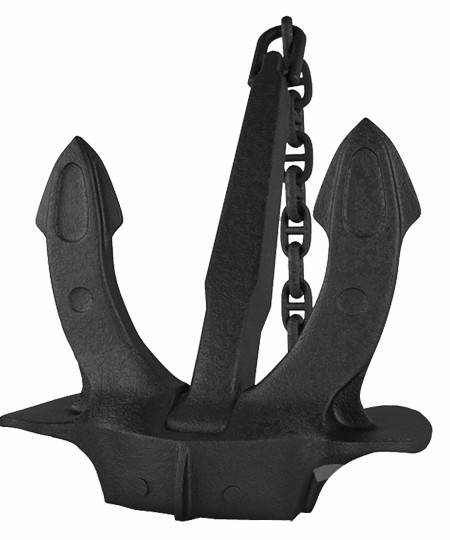

Hall Anchor

A folded anchor is releasable supported on a munition by shear pins through its shank. The anchor's spring loaded stock and arms are extended into their operative mode upon impact of the munition on the target area (water). The anchor is maintained in the folded condition by the locking action of fluke locks mounted on the stock. Spring action of a stock spring against a slider forces the stock to its fully opened position. The slider and link locks the stock into an open position so that it cannot collapse during the anchoring action.

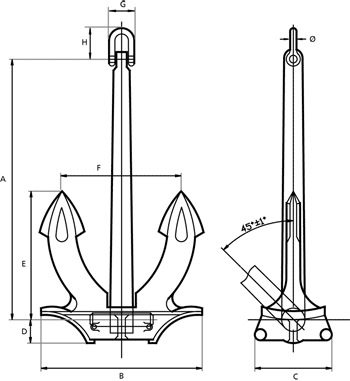

Weight	A	B	C	D	E	F	G	H	ø
Kg	mm	mm	mm	mm	mm	mm	mm	mm	mm
10	385	270	125	42	191	191	51	60	15
16	410	316	146	49	223	223	57	72	16
25	476	367	169	57	259	259	74	84	20
35	533	411	189	64	290	290	80	98	22
50	599	464	214	71	325	325	80	98	22
65	658	505	233	78	355	355	88	115	24
75	690	530	244	82	374	374	88	115	24
100	760	582	270	90	410	410	88	115	24
125	814	629	290	97	443	443	100	130	28
150	866	670	308	103	470	470	100	130	28
200	952	735	339	114	518	518	113	145	32
220	982	759	350	117	534	534	113	145	32
250	1019	784	361	121	552	552	125	160	36
300	1095	844	388	130	595	595	139	175	40
360	1160	898	412	138	630	630	139	175	40
420	1255	967	444	149	675	675	152	192	45
480	1300	1000	460	154	700	700	167	215	48
570	1380	1060	490	164	745	745	167	215	48
660	1422	1096	506	169	769	769	175	235	50
700	1453	1119	516	172	784	784	175	235	50
780	1506	1160	535	178	813	813	175	235	50
900	1580	1220	560	188	855	855	183	255	50
