Brand: VENIT/OEM
Save on high-quality galvanized guy ropes for electric cables in various constructions (1x7, 1x19, 1x37) from our factory in China. Our guy ropes offer exceptional strength, durability, and corrosion resistance, making them ideal for securing electric cables and other applications.

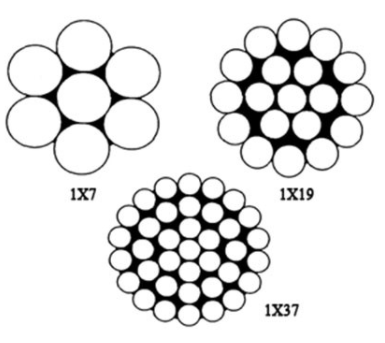

1x7 1x19 1x37 Galvanized Guy Rope for Electric Cable
Construction | Wire Diameter(mm) | Guy Rope Diameter(mm) | Guy Rope Section (mm2) | Tensile Strength of Rope(Mpa) | Weight of Zinc Coatg/m2 | Approx. Weight kg/100m | ||
1370 | 1470 | 1570 | ||||||
Total Breaking Load of Wire-not less than(Kn) | ||||||||
1×7 | 1.0 | 3.0 | 5.5 | 7.54 | 8.08 | 8.64 | 185 | 4.37 |
1.2 | 3.6 | 7.92 | 10.8 | 11.6 | 12.4 | 185 | 6.29 | |
1.4 | 4.2 | 10.7 | 14.7 | 15.8 | 16.9 | 185 | 8.56 | |
1.6 | 4.8 | 14 | 19.2 | 20.6 | 22 | 200 | 11.1 | |
1.8 | 5.4 | 17.8 | 24.4 | 26.1 | 27.9 | 215 | 14.1 | |
2.0 | 6.0 | 22 | 30.1 | 32.3 | 34.5 | 230 | 17.4 | |
2.3 | 6.9 | 29.1 | 39.8 | 42.7 | 45.6 | 230 | 23 | |
2.6 | 7.8 | 37.1 | 50.9 | 54.6 | 58.4 | 230 | 29.5 | |
2.9 | 8.7 | 46.2 | 63.3 | 67.9 | 72.6 | 230 | 36.7 | |
3.0 | 9.6 | 56.3 | 77.1 | 82.7 | 77.7 | 230 | 44.7 | |
3.5 | 10.5 | 67.3 | 92.2 | 98.9 | 105 | 245 | 53.4 | |
3.8 | 11.4 | 79.4 | 108 | 116 | 124 | 260 | 63 | |
4.0 | 12.0 | 87.9 | 120 | 129 | 138 | 260 | 69.9 | |
1×19 | 1.6 | 8.0 | 38.2 | 52.3 | 56.1 | 59.9 | 200 | 30.4 |
1.8 | 9.0 | 48.3 | 66.2 | 70 | 75.9 | 215 | 38.4 | |
2.0 | 10.0 | 59.7 | 81.7 | 87.7 | 93.7 | 230 | 47.5 | |
2.3 | 11.5 | 78.9 | 108 | 116 | 123 | 230 | 62.8 | |
2.6 | 13.0 | 101 | 138 | 148 | 158 | 230 | 80.3 | |
2.9 | 14.5 | 125 | 171 | 184 | 197 | 230 | 99.9 | |
3.0 | 15.0 | 134 | 250 | 197 | 210 | 230 | 106 | |
3.5 | 17.5 | 182 | 183 | 268 | 287 | 245 | 145 | |
3.8 | 19.0 | 215 | 250 | 316 | 338 | 260 | 171 | |
4.0 | 20.0 | 238 | 250 | 350 | 374 | 260 | 190 | |
1×37 | 1.6 | 11.2 | 14 | 19.2 | 20.6 | 22 | 200 | 59.7 |
1.8 | 12.6 | 17.8 | 24.4 | 26.1 | 27.9 | 215 | 75.6 | |
2.0 | 14.0 | 22 | 30.1 | 32.3 | 34.5 | 230 | 93.3 | |
2.3 | 16.1 | 29.1 | 39.8 | 42.7 | 45.6 | 230 | 123 | |
2.6 | 18.2 | 37.1 | 50.9 | 54.6 | 58.3 | 230 | 158 | |
2.9 | 20.3 | 46.2 | 63.3 | 67.9 | 72.6 | 230 | 196 | |
3.0 | 21.0 | 49.5 | 67.7 | 72.7 | 77.6 | 230 | 210 | |
3.5 | 24.5 | 67.3 | 92.2 | 99 | 105 | 245 | 286 | |
3.8 | 26.6 | 79.4 | 108 | 116 | 124 | 260 | 337 | |
4.0 | 28.0 | 87.9 | 120 | 129 | 138 | 260 | 373 | |
4.2 | 29.4 | 97 | 132 | 142 | 152 | 260 | 411 | |
4.4 | 30.8 | 106 | 145 | 156 | 167 | 260 | 452 |
