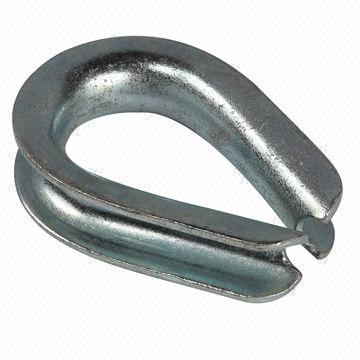

G414 Heavy Duty Wire Rope Thimble
G414 meets the performance requirements of Federal Specification FF-T-276b
Type Ⅲ,except for those provisions required of the contractor.
Available in Hot Dip galvanized or Stainless Steel(Type 304).
Stainless steel recommended for more corrosive environments where greater protection is required.
Greater protection against wear and deformation of the wire rope eye.
Longer service life.

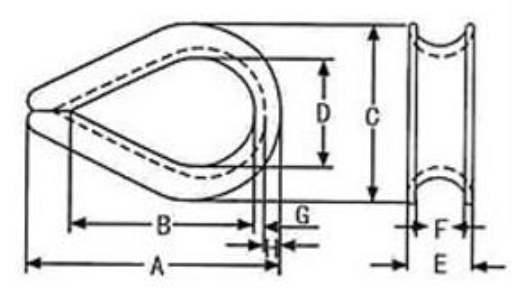

| ROPE | DIMENSIONS | |||||||
| DIA. | (INCH) | |||||||
| (INCH) | A | B | C | D | E | F | G | H |
| 1/4 | 2.19 | 1.62 | 1.5 | 0.88 | 0.41 | 0.28 | 0.06 | 0.25 |
| 5/16 | 2.5 | 1.88 | 1.81 | 1.06 | 0.5 | 0.34 | 0.08 | 0.3 |
| 3/8 | 2.88 | 2.12 | 2.12 | 1.12 | 0.63 | 0.41 | 0.11 | 0.39 |
| 7/16 | 3.25 | 2.38 | 2.38 | 1.25 | 0.72 | 0.47 | 0.12 | 0.45 |
| 1/2-9/16 | 3.62 | 2.75 | 2.75 | 1.5 | 0.89 | 0.59 | 0.15 | 0.48 |
| 5/8 | 4.25 | 3.25 | 3.12 | 1.75 | 1 | 0.66 | 0.16 | 0.53 |
| 3/4 | 5 | 3.75 | 3.81 | 2 | 1.22 | 0.78 | 0.22 | 0.69 |
| 7/8 | 5.5 | 4.25 | 4.25 | 2.25 | 1.38 | 0.94 | 0.22 | 0.78 |
| 1 | 6.12 | 4.5 | 4.75 | 2.5 | 1.56 | 1.06 | 0.25 | 0.88 |
| 1-1/8-1-1/4 | 7 | 5.12 | 5.88 | 2.88 | 1.88 | 1.31 | 0.25 | 1.25 |
| 1-1/4-1-3/8 | 9.08 | 6.5 | 6.81 | 3.5 | 2.25 | 1.44 | 0.37 | 1.29 |
| 1-3/8-1-1/2 | 9 | 6.25 | 7.12 | 3.5 | 2.62 | 1.56 | 0.5 | 1.31 |
| 1-5/8 | 11.25 | 8 | 8.12 | 4 | 3 | 1.72 | 0.5 | 1.38 |
| 1-3/4 | 12.19 | 9 | 8.5 | 4.5 | 3.06 | 1.84 | 0.5 | 1.5 |
| 1-7/8-2 | 15.12 | 12 | 10.38 | 6 | 3.38 | 2.09 | 0.5 | 1.69 |
| 2-1/4 | 17.5 | 14 | 11.88 | 7 | 3.88 | 2.38 | 0.62 | 1.82 |
