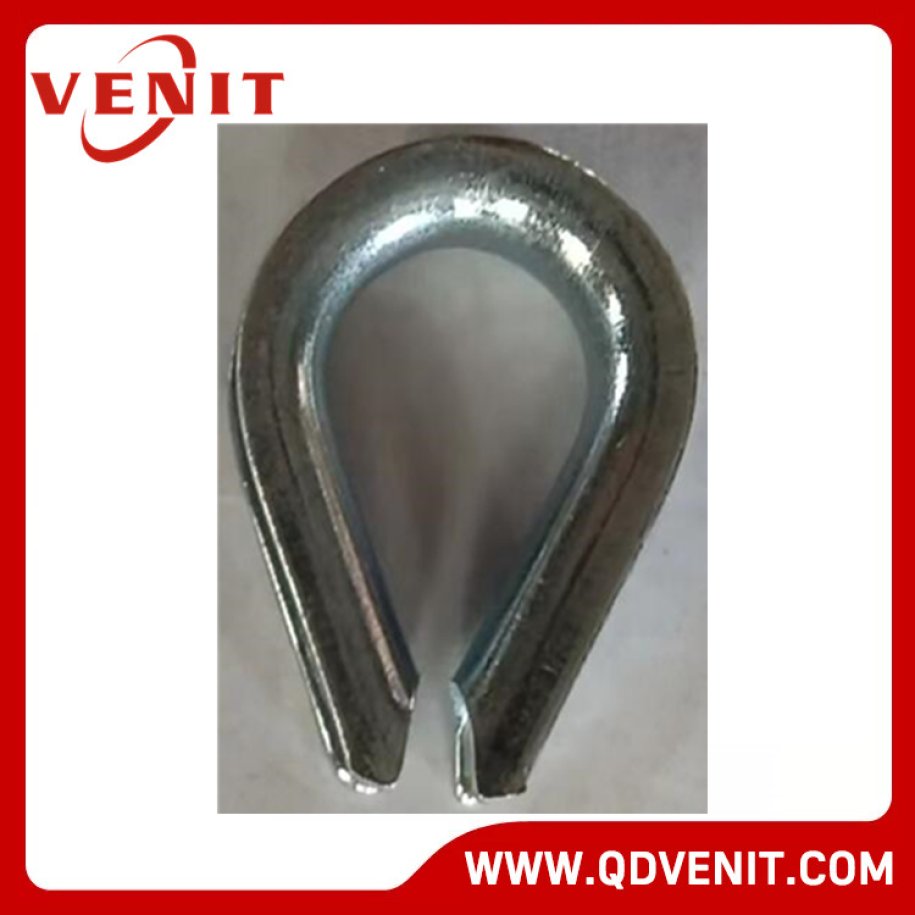

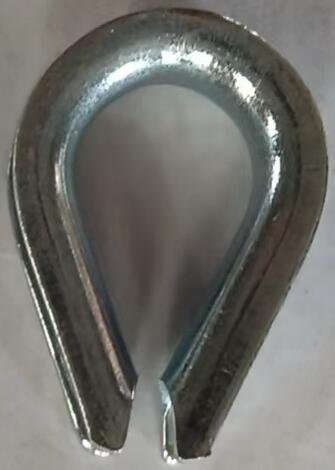

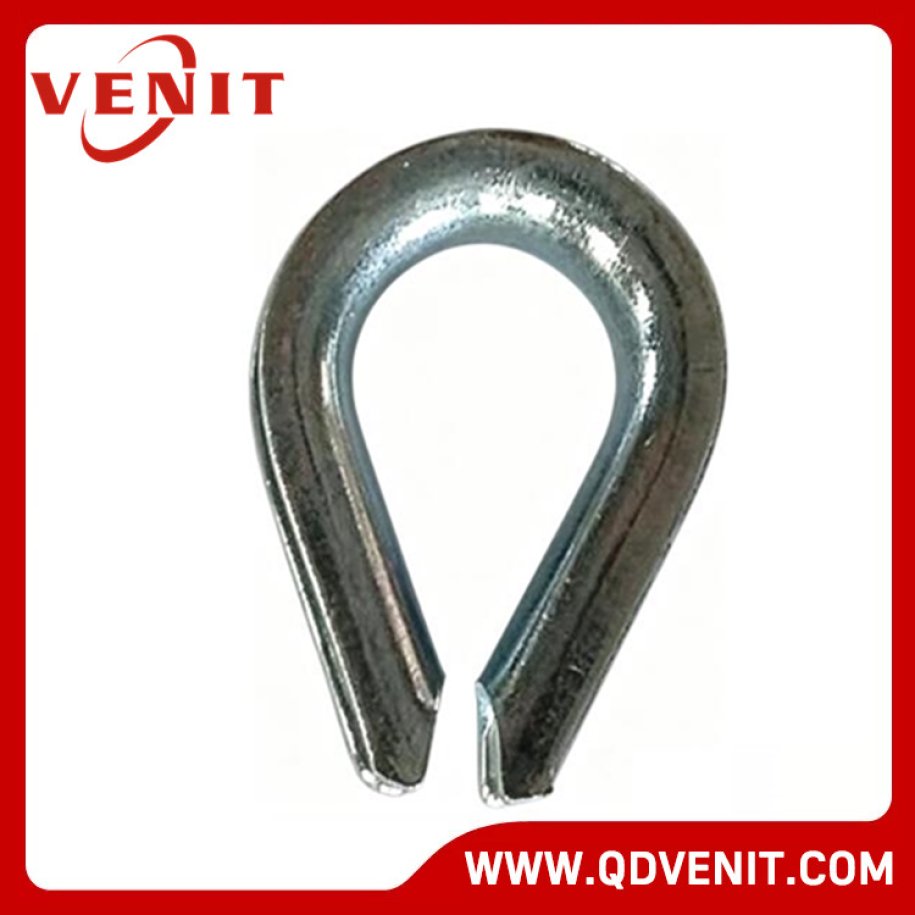

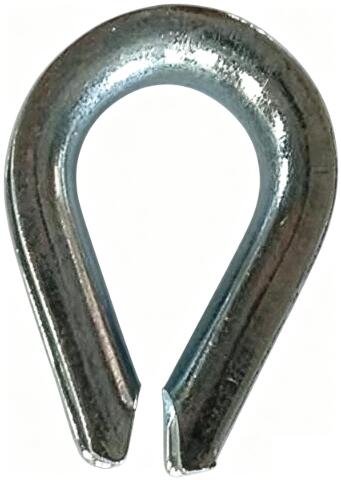

DIN6899B Wire Rope Thimble
DIN6899 B TYPE WIRE ROPE THIMBLE | |||||||

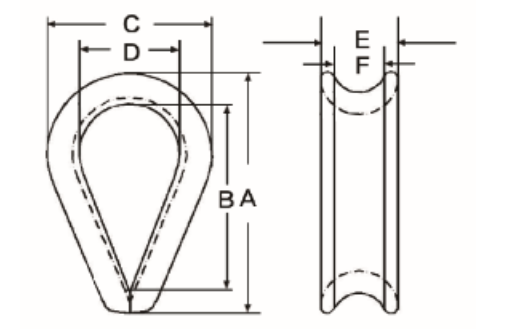

SIZE | DIMENSIONS(MM) | WEIGHT | |||||
MM | A | B | C | D | E | F | KG/100PCS |
3 | 28 | 19 | 18.5 | 12 | 6 | 3 | 0.5 |
4 | 30 | 21 | 20.5 | 13 | 7 | 4 | 0.8 |
5 | 33 | 23 | 22.5 | 14 | 8 | 5 | 1 |
6 | 39 | 26 | 27 | 16 | 10 | 6 | 1.6 |
7 | 43 | 30 | 30 | 18 | 11 | 7 | 1.9 |
8 | 48 | 32 | 33 | 20 | 12 | 8 | 3 |
10 | 58 | 38 | 39 | 24 | 14 | 10 | 4.7 |
12 | 69 | 45 | 47 | 28 | 17 | 12 | 6.8 |
13 | 73 | 48 | 50 | 30 | 18 | 13 | 8 |
14 | 77 | 51 | 53 | 32 | 19 | 14 | 10 |
16 | 88 | 58 | 60 | 36 | 22 | 16 | 14.5 |
17 | 95 | 61 | 65 | 38 | 25 | 17 | 18 |
18 | 100 | 64 | 68 | 40 | 26 | 18 | 20 |
20 | 113 | 72 | 75 | 45 | 28 | 20 | 29 |
22 | 123 | 80 | 82 | 50 | 30 | 22 | 32 |
24 | 135 | 90 | 92 | 56 | 34 | 24 | 47 |
26 | 145 | 99 | 100 | 62 | 36 | 26 | 54 |
28 | 162 | 112 | 110 | 70 | 38 | 28 | 80 |
30 | 175 | 120 | 120 | 75 | 42 | 30 | 110 |
