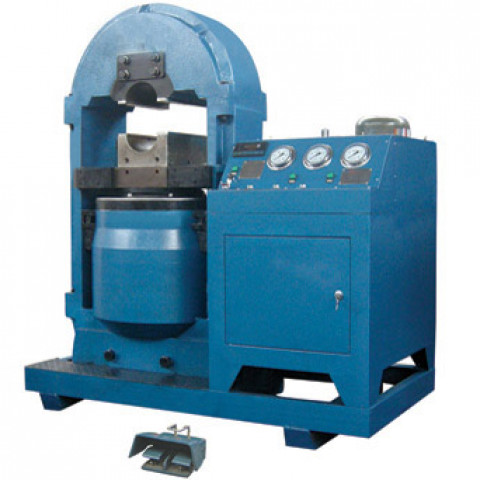

Frame Style Hydraulic Swaging Machine SM600 SM1500
Frame Style Hydraulic Swaging Machine SM600/SM1500
Structure and Characteristic
With importing foreign updated technology and new process and improving our years of production practice, has developed a new generation of advanced wire hope swaging luachine ---Frame Hhydrahydraulic Swaging Machine.
1、The Frame are designd to use prestress wire rope winding technology,et distributes the stress around the frame homogeneously,and makes the Bodies never cracking.
2、With guiding and sliding devices on the die seats,the upper and lower dies can close-up conveniently.
Maior Technique Specification and Parameter
| Utems | Unit | Data | |
| Model | SM600 | SM1500C | |
| Max.Pressure Capauty | KN | 6000 | 15000 |
| Capacity | |||
| Maximum Stroke | MM | 145 | 200 |
| Working Stroke | MM | 120 | 150 |
| System Pressure | MPA | 60/7 | 70/7 |
| Motor Power | KW | 4 | 7.5 |
| Dimensions | MM | 1500×660×1650 | 1800×960×2100 |
| Approx Weight | KGS | ≈2300 | ≈6200 |
