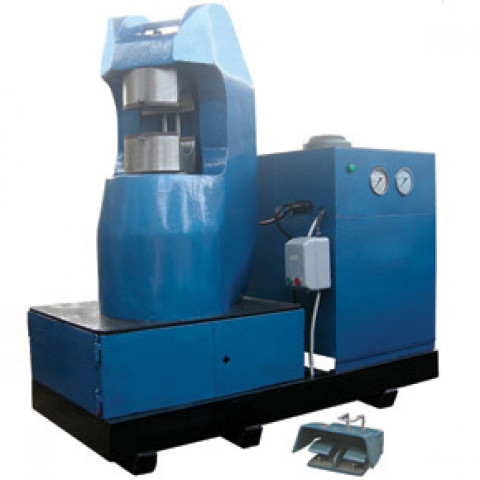

C-Type Hydraulic Swaging Machine SM350C/SM600C
Structure and Characteristic
1、The C-Type bodies are made of one piese casting alloy steel ,it makes the Swaging Machine more durable ,and more stronger.
2、Equipped with high pressure Low perssure oil pumps the SAFETYLIFT Swaging Machine can steady load and unload so that the swaging quality is improved.
3、The dies are fully accessible in C-Type bodies design ,allowing the rigger freely more the slings around the swaging area .
Maior Technique Specification and Parameter
| Items | Unit | Data | |
| Model | SM350 | SM600C | |
| Max.Pressure Capauty | KN | 3500 | 6000 |
| Capacity | |||
| Maximum stroke | MM | 110 | 140 |
| Working stroke | MM | 85 | 120 |
| System pressure | MPA | 60/7 | 60/7 |
| Motor Power | KW | 4 | 4 |
| Dimensions | MM | 1300×600×1600 | 1500×660×650 |
| Approx Weight | KGS | ≈1800 | ≈4500 |
