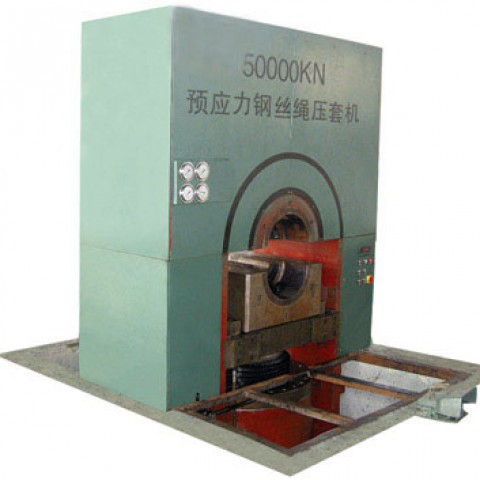

Frame Style Hydraulic Swaging Machine SM3000 SM5000
Frame Style Hydraulic Swaging Machine SM3000/SM5000
Structure and Characteristic
1、The main working cylinder with “U”Type Cup Style Structural design,the piston and cylinder cover with latest style of over high pressure combined sealing decive and high antiwear guiding ring ,it makes the cylinder more durabie more reliable.
2、With embedded design ,the main cylinder is fied in with the frame solidly.
3、Round in dependent dies can be set up and change quickly.
4、Swaging pressure ralue can be set by digitde dispiay and PLC contyol button.
5、With a strong afflatus of the Arc de Triomphe ,sin3000 and sin5000 Swaging Machine looks grand and beautiful.
Major Technique Specification and Parameter
Items | Unit | Data | |
Model |
| SM3000 | SM5000 |
Max.pressure capauty | KN | 30000 | 50000 |
Swaenng capacity | MM | #105 5’ | #140 aluninum femmules 6“ flemish eye steel sleeve |
MaximumStroke | MM | 270 | 420 |
WorkingStroke | MM | 240 | 370 |
System Pressure | MPA | 70/12 | 65/12 |
Motor Power | KW | 7.2x2 | 7.5x4 |
Dimensions | MM | 1270x1000x2800 | 1660x1275x3500 |
Approx.Weight | KGS | ≈18000 | ≈30000 |
