WS21 Endless Wire Rope Slings

WS21 Endless Wire Rope Slings

Brand: VENIT/OEM

Product Details

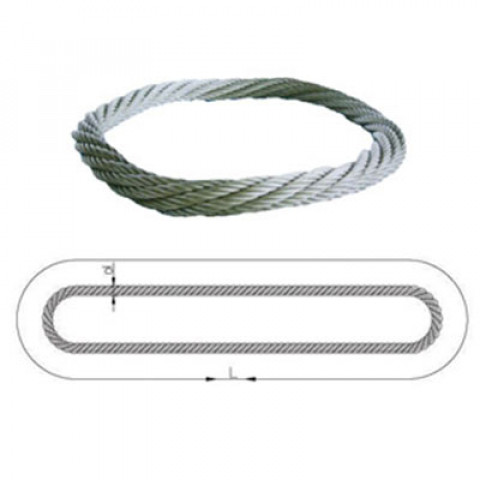

WS21 Endless Wire Rope Slings

Part No.	Nominal dia.d (mm)	Breaking load (KN)	Vertical working load of single leg(KN)	Working load of double leg (KN)		Working load of four leg (KN)		Approx. weight (kg/m)

			α=0°	α≤45°	45°≤α≤90°	α≤45°	45°≤α≤90°
WS210100	10	60	10	18	14	36	28	0.29
WS210120	12	100	16	30	22	60	44	0.48
WS210150	15	140	23	41	32	82	64	0.71
WS210180	18	180	30	54	42	108	84	0.98
WS210210	21	235	39	70	55	140	110	1.11
WS210240	24	305	51	92	70	184	140	1.44
WS210270	27	385	64	115	90	230	180	1.82
WS210300	30	475	79	142	110	284	220	2.25
WS210360	36	605	114	205	160	410	320	3.39
WS210420	42	930	155	280	217	560	434	4.61
WS210480	48	1220	203	365	284	730	568	6.02
WS210540	54	1540	256	460	358	920	716	7.62
WS210600	60	1900	316	570	442	1140	884	9.38
WS210660	66	2305	384	690	538	1380	1076	11.36
WS210720	72	2745	458	824	640	1648	1280	13.53
WS210780	78	3220	536	964	750	1928	1500	15.91
WS210840	84	3730	622	1120	870	2240	1740	18.43
WS210900	90	4285	714	1285	1000	2570	2000	21.15
WS210960	96	4880	812	1462	1136	2924	2274	24.07
WS211020	102	5510	918	1652	1285	3304	2570	27.20
WS211080	108	6175	1030	1854	1442	3708	2884	30.46
WS211140	114	6875	1146	2062	1604	4124	3208	34.00
WS211200	120	7615	1270	2286	1778	4572	3556	37.67
WS211260	126	8400	1400	2520	1960	5040	3920	41.48
WS211320	132	9210	1535	2763	2150	5526	4300	45.56
WS211380	138	10032	1672	3010	2340	6020	4680	49.78
WS211440	144	10945	1824	3282	2554	6564	5108	54.20
WS211500	150	11855	1976	3556	2766	7112	5532	58.82
WS211560	156	12860	2144	3860	3002	7720	6004	63.65
WS211620	162	13860	2310	4158	3234	8316	6468	68.68
WS211680	168	14955	2492	4486	3488	8972	6976	74.12
WS211740	174	16050	2675	4815	3745	9630	7490	78.88
WS211800	180	17145	2858	5144	4000	10288	8000	85.00
WS211860	186	17600	2934	5282	4108	10564	8216	94.52
WS211920	192	18695	3116	5608	4362	11216	8724	100.6
WS211980	198	19800	3300	5940	4620	11880	9240	106.8
WS212040	204	21160	3526	6346	4936	12692	9872	113.6
WS212100	210	22345	3724	6702	5214	13404	10428	120.4
WS212160	216	23710	3950	7110	5530	14220	11060	127.2
WS212220	222	24990	4165	7498	5830	14995	11660	134.6
WS212280	228	26355	4392	7906	6150	15812	12300	142.1
WS212340	234	27815	4636	8345	6490	16690	12980	149.6
WS212400	240	29275	4880	8784	6832	17568	13664	157.1
