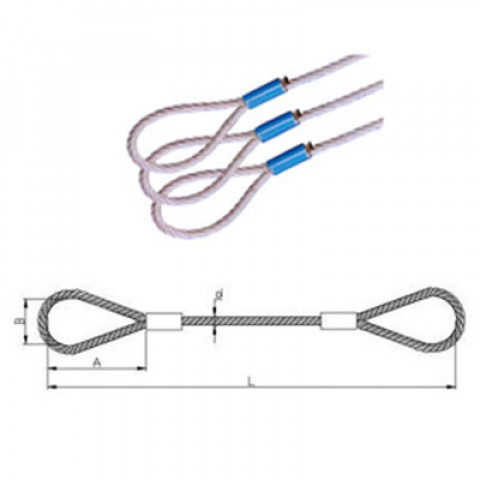

WS01 Swaged Soft Eye Slings
Part No. | Rope dia.d (mm) | Soft loop dimensions(mm) | M.B.L. (t) | Working load limit(t) | ||
A | B | n=5 | n=6 | |||
WS010050 | 5 | 130 | 65 | 1.25 | 0.25 | 0.20 |
WS010060 | 6 | 150 | 75 | 1.80 | 0.36 | 0.30 |
WS010070 | 7 | 150 | 75 | 2.46 | 0.50 | 0.40 |
WS010080 | 8 | 200 | 100 | 3.21 | 0.60 | 0.50 |
WS010090 | 9 | 200 | 100 | 4.07 | 0.80 | 0.70 |
WS010100 | 10 | 200 | 100 | 5.03 | 1.00 | 0.80 |
WS010110 | 11 | 230 | 115 | 6.08 | 1.20 | 1.00 |
WS010120 | 12 | 230 | 115 | 7.23 | 1.50 | 1.20 |
WS010130 | 13 | 230 | 115 | 8.49 | 1.70 | 1.40 |
WS010140 | 14 | 250 | 125 | 9.85 | 2.00 | 1.60 |
WS010160 | 16 | 300 | 150 | 12.85 | 2.60 | 2.10 |
WS010180 | 18 | 300 | 150 | 16.32 | 3.30 | 2.70 |
WS010200 | 20 | 350 | 175 | 20.09 | 4.00 | 3.40 |
WS010220 | 22 | 350 | 175 | 24.27 | 4.90 | 4.10 |
WS010240 | 24 | 450 | 225 | 28.96 | 5.80 | 4.80 |
WS010260 | 26 | 450 | 225 | 33.96 | 6.80 | 5.70 |
WS010280 | 28 | 500 | 250 | 39.36 | 7.90 | 6.60 |
WS010300 | 30 | 500 | 250 | 45.17 | 9.00 | 7.50 |
WS010320 | 32 | 550 | 275 | 51.39 | 10.30 | 8.60 |
WS010340 | 34 | 600 | 300 | 58.12 | 11.60 | 9.70 |
WS010360 | 36 | 600 | 300 | 65.06 | 13.00 | 10.80 |
WS010380 | 38 | 600 | 300 | 72.50 | 14.50 | 12.10 |
WS010400 | 40 | 700 | 350 | 80.35 | 16.10 | 13.40 |
WS010420 | 42 | 800 | 400 | 88.61 | 17.70 | 14.80 |
WS010440 | 44 | 800 | 400 | 97.28 | 19.50 | 16.20 |
WS010460 | 46 | 900 | 450 | 106.05 | 21.20 | 17.70 |
WS010480 | 48 | 900 | 450 | 116.25 | 23.30 | 19.40 |
WS010500 | 50 | 1000 | 500 | 125.43 | 25.10 | 21.00 |
WS010520 | 52 | 1000 | 500 | 135.62 | 27.10 | 22.70 |
WS010540 | 54 | 1000 | 500 | 146.84 | 29.40 | 24.50 |
WS010560 | 56 | 1000 | 500 | 157.04 | 31.40 | 26.20 |
WS010580 | 58 | 1200 | 600 | 169.27 | 33.90 | 28.20 |
WS010600 | 60 | 1200 | 600 | 180.49 | 36.10 | 30.10 |
WS010620 | 62 | 1200 | 600 | 185.59 | 37.10 | 31.00 |
WS010640 | 64 | 1300 | 650 | 197.82 | 40.00 | 33.00 |
WS010660 | 66 | 1300 | 650 | 210.06 | 42.00 | 35.00 |
WS010680 | 68 | 1400 | 700 | 223.32 | 44.70 | 37.20 |
WS010700 | 70 | 1400 | 700 | 236.57 | 47.30 | 39.40 |
WS010720 | 72 | 1400 | 700 | 249.93 | 50.00 | 41.60 |
WS010740 | 74 | 1500 | 750 | 260.140 | 52.80 | 44.00 |
WS010760 | 76 | 1500 | 750 | 278.38 | 55.70 | 46.40 |
WS010780 | 78 | 1600 | 800 | 293.68 | 58.70 | 49.00 |
WS010800 | 80 | 1600 | 800 | 307.95 | 61.10 | 51.30 |
WS010820 | 82 | 1600 | 800 | 324.27 | 64.90 | 54.00 |
WS010840 | 84 | 1700 | 850 | 339.57 | 67.90 | 56.60 |
WS010860 | 86 | 1700 | 850 | 356.90 | 71.40 | 59.50 |
WS010880 | 88 | 1800 | 900 | 373.22 | 74.60 | 62.20 |
WS010900 | 90 | 1800 | 900 | 390.55 | 78.10 | 65.10 |
WS010920 | 92 | 1800 | 900 | 407.89 | 81.60 | 68.00 |
WS010940 | 94 | 1900 | 950 | 426.24 | 85.30 | 71.00 |
WS010960 | 96 | 1900 | 950 | 444.60 | 88.90 | 74.10 |
WS010980 | 98 | 2000 | 1000 | 462.95 | 92.60 | 77.20 |
WS011000 | 100 | 2000 | 1000 | 482.33 | 96.50 | 80.40 |
WS011020 | 102 | 2000 | 1000 | 501.10 | 100.40 | 83.60 |
WS011040 | 104 | 2100 | 1050 | 521.07 | 104.20 | 86.90 |
WS011060 | 106 | 2100 | 1050 | 541.47 | 108.30 | 90.30 |
WS011080 | 108 | 2200 | 1100 | 561.86 | 112.40 | 93.60 |
WS011100 | 110 | 2200 | 1100 | 583.28 | 116.70 | 97.20 |
