Elevate your industrial style with our classy VNT617 Lifting Clutch, designed specifically for Concrete Precast Elements. Crafted in China with elegance and functionality in mind, our lifting clutches ensure safe and efficient lifting operations.
VNT617 Lifting Clutch for Concrete Precast Element
Component A: cast super alloy
Component B: Forged alloy steel
100%magnaflux crack detection.
Breaking Test.
Surface finish: Electro galvanizing OR Powder Plastified
Ultimate load is 5 times the Working Load Limit.

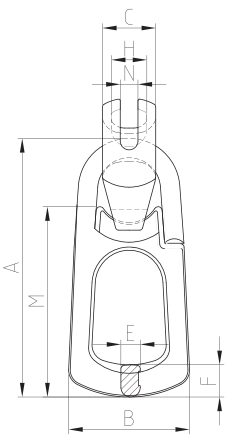

| ITEM NO. | WEIGHT/kg | WLL/T | B.L/T | A±1 | B±0.5 | C±1 | M±1 | E±1.5 | N±1 | H±1.5 |
VNT617- 1-1.3T | 0.87 | 1.3 | 6.5 | 158 | 75 | 33 | 118 | 12 | 11 | 22 |
| VNT617- 1.5-2.5T | 1.5 | 2.5 | 12.5 | 193 | 91.5 | 41 | 145 | 14 | 16 | 28 |
| VNT617- 3-5T | 3.1 | 5 | 25 | 236 | 118 | 57 | 170 | 16 | 22 | 38.5 |
| VNT617- 6-10T | 9 | 10 | 50 | 332 | 160 | 73 | 245.5 | 27 | 30 | 48.5 |
| VNT617- 12-20T | 21 | 20 | 100 | 431 | 182 | 110 | 312 | 31 | 42 | 72 |
