VNT101 Lifting Clutch For Concrete Precast Element
Features
● Material: alloy steel forgings.
● We should carry out 100% magnetic powder flaw detection.
● We should carry out strict sampling and breakage testing for each batch of products.
● Surface treatment: cold galvanizing or plastic spraying.
● Ultimate load is 4 times the Working Load Limit.

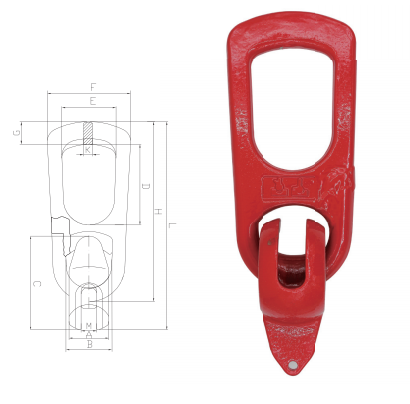

| ITEM NO. | WEIGHT/kg | WLL/T | B.L/T | A±1 | B±1 | C±2 | D±1 | E±1 | F±1 | H±3 | M±2 | L±2 | G | K±0.5 |
| VNT101-1-1.3T | 0.89 | 1.3 | 5.2 | 33 | 42 | 80.4 | 70.5 | 45 | 73 | 160 | 11 | 186 | 20.5 | 12.5 |
| VNT101-1.5-2.5T | 1.3 | 2.5 | 10 | 41 | 49 | 102 | 85 | 57 | 88 | 188 | 16 | 227 | 27 | 14 |
| VNT101-3-5T | 3.24 | 5 | 20 | 55 | 70 | 133 | 88 | 69 | 110 | 242 | 22 | 282 | 35 | 18 |
| VNT101-6-10T | 10.00 | 10 | 40 | 73 | 92 | 176 | 116 | 83 | 161 | 342 | 30 | 391 | 51 | 27 |
| VNT101-12-20T | 20.40 | 20 | 80 | 110 | 114.5 | 224 | 133.5 | 107.5 | 182 | 437 | 42 | 497 | 77 | 31 |
| VNT101-12-32T | 46.50 | 32 | 128 | 154 | 172 | 307 | 189 | 164 | 272 | 560 | 52 | 661 | 102 | 40 |
