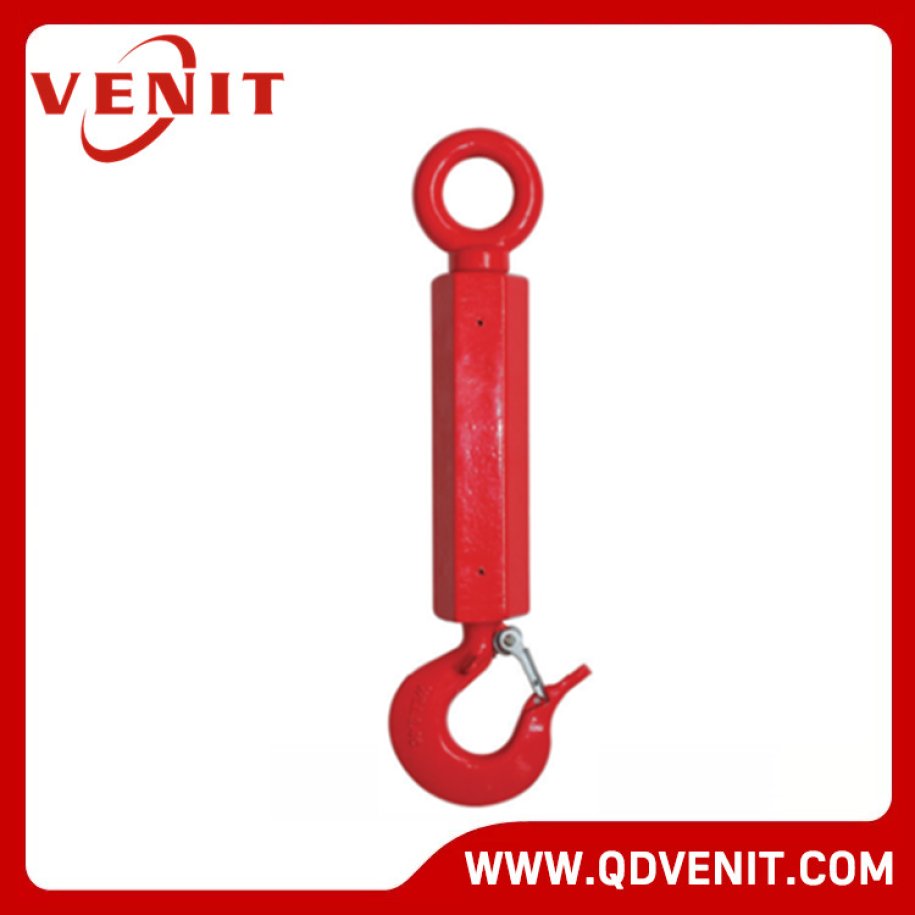

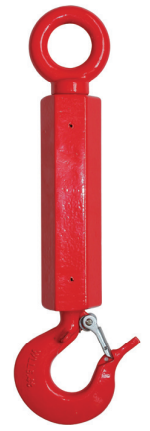

VNT552 Alloy Shank Hook with Eye Screw
Available in carbon steel and alloy steel.
Forged-Quenched and tempered.
Alloy steel: Ultimate load is 4 times the Working Load Limit.
Carbon steel: Ultimate load is 5 times the Working Load Limit.

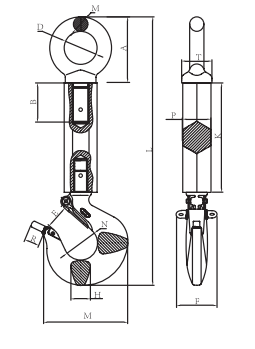

ITEM NO. | WEIGHT/KG | WLL/T | B.L/T | A | B±3 | E±1.5 | F+0-0.5 | H | M±3 | K±0.5 | P±1 | T±1 | M±0.5 | D | R | N±2 | L±5 |
VNT552-5.4T | 9.6 | 5.4 | 21.6 | 108 | 55 | 34.2 | 68 | 29.5 | 128 | 275.5 | 65 | 46 | 23 | 51 | 25 | 50 | 497 |
VNT552-12T | 17.3 | 12 | 60 | 150 | 90 | 54 | 95 | 45 | 192 | 275.5 | 65 | 70 | 33 | 75 | 35 | 77 | 611 |
VNT552-22T | 29.8 | 22 | 88 | 180 | 87 | 75 | 138 | 60 | 265 | 283 | 85 | 102 | 41 | 91 | 50 | 106 | 720 |
VNT552-31.5T | 44 | 31.5 | 126 | 191 | 83 | 88 | 150 | 78 | 350 | 283 | 85 | 115 | 48 | 110 | / | 128 | 820 |
