VNT011 G80 US Type Shank Self-Locking Hook
Forged super alloy steel -Quenched and Tempered
Individually proof test at 2.5 times Working Load Limit
Fatigue tested at 1.5 times Working Load Limit for20000 cycles
Breakage test
100% magnaflux crack detection
Surface finish:Powder plastified
Color code:Red RAL3020 / Yellow RAL1003
Position lock latch is SELF-LOCKING when hook is loaded
Minimum Ultimate load is 4 times the Working Load Limit.

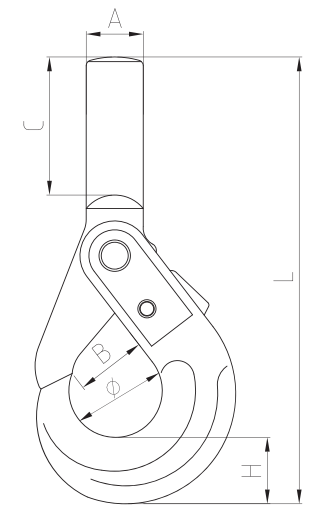

Item No. | Weight/Lbs | WLL/Lbs | B.L/Lbs | A±1 | B±1.5 | C±1.5 | H±1 | L±2.5 | Φ±1.5 |
VNT011-7/8 | 2.80 | 4500 | 18000 | 25.4 | 35 | 61.5 | 29.5 | 199 | 42 |
VNT011-10 | 4.40 | 7100 | 28400 | 29 | 42 | 76.5 | 34.5 | 243 | 55 |
