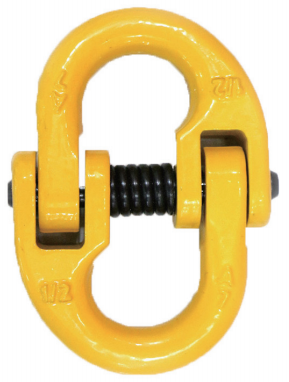

VNT076 G80 A337 US Type Connecting Link
Features
● It is forged by special alloy steel with high intensity and high toughness, and then it is heat treated;
● It can be matched with sling and G80 chains which can meet the standard EN818-2;
● Each workpiece should pass testing at 2.5 times of working load limit;
● We should carry out sampling and 20000 times of fatigue testing;
● We should carry out strict sampling and breakage testing for each batch of products;
● We should carry out 100% magnetic powder flaw detection;
● 100% of the pin should be tested to ensure that they have the same hardness;
● Surface treatment: plastics spraying.
● Color code: red RAL3020/yellow RAL1003.
Mininum Ultimate Load is 4 times the Working Load Limit.
| Item No. | Weight/kg | WLL/T | B.L/T | A+1.5 | B+1.5 | L±2.5 | K±2 | W±1 | H±1 | C±0.2 | D±0.3 | E±1.5 |
| VNT076-1/4 | 0.13 | 1.5 | 6 | 16.5 | 18 | 67 | 51 | 8 | 13 | 4 | 4 | 18.5 |
| VNT076-9/32 | 0.15 | 1.6 | 6.4 | 18 | 18 | 64 | 48.6 | 8 | 13 | 4 | 5.1 | 17.6 |
| VNT076-5/16 | 0.15 | 2 | 8 | 17.7 | 21.8 | 78.5 | 58.5 | 9.8 | 14.5 | 6.5 | 6.6 | 21.5 |
| VNT076-3/8 | 0.33 | 3.2 | 12.8 | 22 | 24 | 87.6 | 63.6 | 12 | 17 | 6.2 | 8.1 | 21.5 |
| VNT076-1/2 | 0.76 | 5.4 | 21.6 | 28.5 | 35 | 115.5 | 85.5 | 15 | 21.6 | 7.8 | 7.8 | 28 |
| VNT076-5/8 | 1.3 | 8.2 | 32.8 | 33 | 40.5 | 143 | 106 | 18.5 | 26 | 9.5 | 10 | 36 |
| VNT076-3/4 | 2.27 | 12.8 | 51.2 | 41 | 47 | 162 | 116 | 23 | 32 | 12 | 13 | 39 |
| VNT076-7/8 | 3.4 | 15.5 | 62 | 50.5 | 54.5 | 188.5 | 136.5 | 26 | 38 | 13 | 15.5 | 47.5 |
