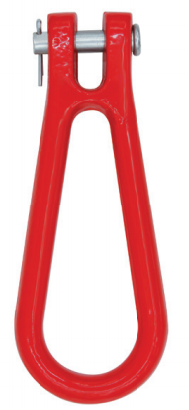

VNT004 G80 Omega Link
Forged or welded super alloy steel.
Suitable for use with G80 chain.
Individually proof tested at 2.5 times Working Load Limit.
100% Magnaflux Crack Detection.
Fatigue tested at 1.5 times Working Load Limit for 20000 cycles.
Strict break load test.
Surface finish: Power plastified
Colour: Yellow or Red RALcode: RAL1003 or RAL3020. Other colour is available as per request.
All load pin are 100% individually inspected and tested.
Mininum Ultimate Load is 4 times the Working Load Limit.

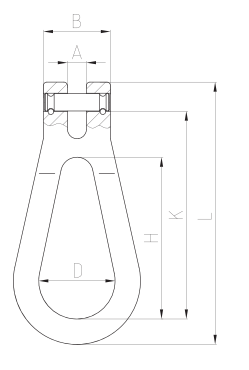

ITEM NO. WEIGHT/kg WLL/T B.L/T A±0.5 B±1.2 D±1 H±1.5 K±2 L±2 VNT004-10 0.87 3.15 12.6 12.5 46 50 140 173 209 VNT004-13 1.75 5.3 21.2 16.5 58 66 140 182 227
