L650 Mini Manual Hoist Lever Block
Capicity ranges from 0.25T to 6T
Subminiature, super light, simple structure
Subminiature and super light design enable to be operated in higher or narrow places
Low weight, small mounting sizes and small lever force at full load
Premium grade alloy load chain
Drop-forged and expertly heat treated hooks for great strength and longer wearing.
| Model | L650-0.25A | L650-0.5A | L650-0.75A | L650-1.5A | L650-2.5A | L650-2.5A | L650-5A | L650-5A | |
| Capacity | tons | 0.25 | 0.5 | 0.75 | 1.5 | 2.5 | 3 | 5 | 6 |
| Satandard lift | m | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 |
| Running test load | KN | 375 | 750 | 1125 | 2250 | 3750 | 4500 | 7500 | 9000 |
| Effort required to lift rated load | N | 260 | 260 | 220 | 240 | 330 | 350 | 350 | 380 |
| Strands of load chain | 1 | 1 | 1 | 1 | 1 | 1 | 2 | 2 | |
| Diameter of load chain | mm | 4 | 4 | 5 | 7 | 9 | 9 | 9 | 9 |

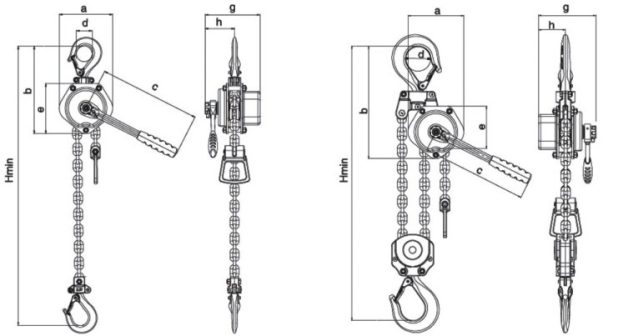

| Dimension (mm) | A | 86 | 95 | 121 | 139 | 173 | 173 | 173 | 173 |
| B | 155 | 178 | 204 | 235 | 286 | 286 | 340 | 340 | |
| C | 170 | 170 | 240 | 240 | 335 | 385 | 335 | 385 | |
| D | 30 | 35 | 30 | 42 | 52 | 52 | 60 | 60 | |
| E | 79 | 87 | 112 | 133 | 162 | 162 | 162 | 162 | |
| F | 245 | 285 | 335 | 365 | 448 | 448 | 600 | 600 | |
| G | 97 | 117 | 124 | 159 | 178 | 178 | 178 | 178 | |
| H | 77 | 80 | 84 | 90 | 97 | 97 | 97 | 97 | |
| Net weight | kg | 2.2 | 3.2 | 5 | 7.6 | 14.5 | 14.5 | 22.5 | 22.5 |
| Extra weight per metre of extra lift | kg | 0.346 | 0.346 | 0.541 | 1.1 | 1.8 | 1.8 | 1.8 | 1.8 |
