Product Details

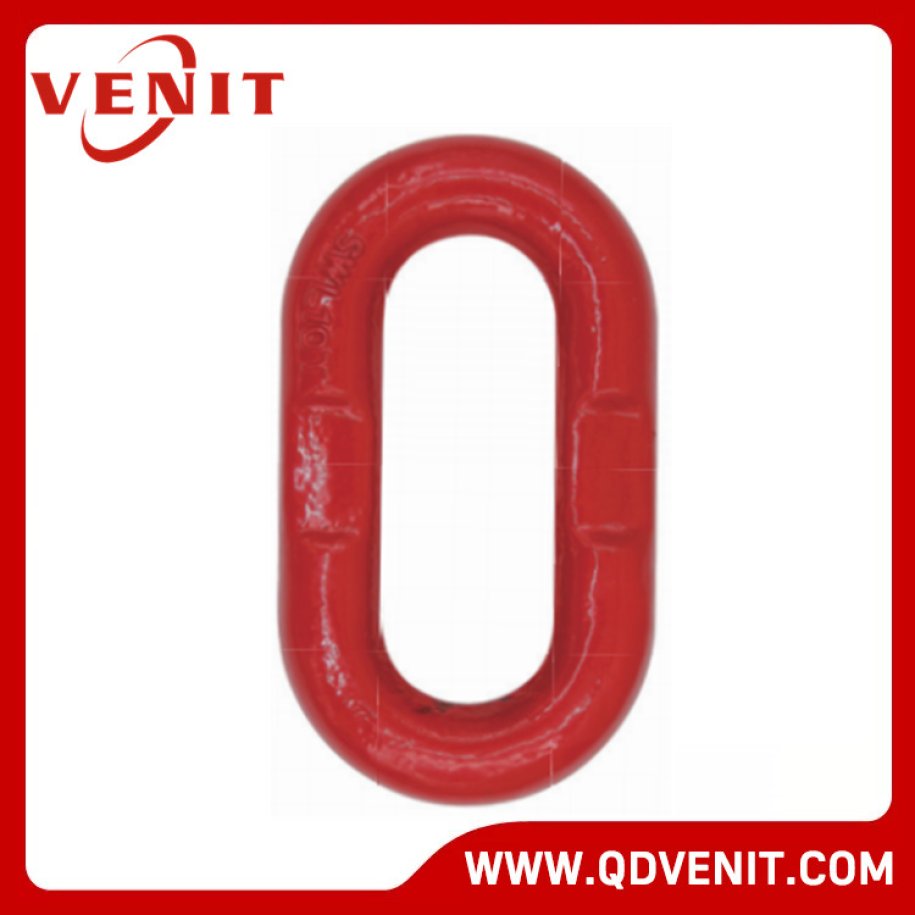

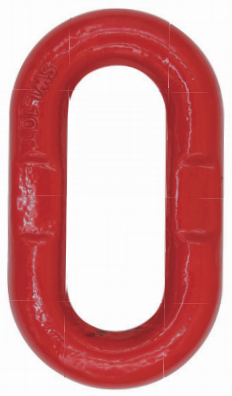

VNT411 Forged Alloy Steel Link
Forged super alloy steel-Quenched and Tempered.
Breaking test.
100% Magnaflux Crack Detection.
Surface finish: Power plastified
Colour: Yellow or Red RALcode: RAL1003 or RAL3020.
| ITEM NO. | WEIGHT/Kg | WLL(T) | B.L(T) | B | A | C | D | E | Φ | R | F | L |
| VNT411-1T | 0.2 | 1 | 5 | 27 | 15 | 40 | 10 | 25 | 12 | 1.5 | 30 | 70 |
| VNT411-1.5T | 0.4 | 1.5 | 7.5 | 33.5 | 17.5 | 50 | 12 | 28 | 16 | 1.5 | 35 | 85 |
| VNT411-3T | 0.8 | 3 | 15 | 39 | 19 | 64 | 13 | 30 | 20 | 1.5 | 38 | 102 |
| VNT411-3.2T | 0.9 | 3.2 | 16 | 42.5 | 22.5 | 65 | 14 | 30 | 20 | 1.5 | 45 | 110 |
| VNT411-4.4T | 1.5 | 4.4 | 22 | 50 | 25 | 80 | 18 | 30 | 25 | 1.5 | 50 | 130 |
| VNT411-5.6T | 2.1 | 5.6 | 28 | 58 | 30 | 90 | 21 | 32 | 28 | 1.5 | 60 | 150 |
| VNT411-10T | 0.82 | 10 | 50 | 40.25 | 18.75 | 63.5 | 14 | 22.6 | 21 | 1.5 | 37.5 | 101 |
| VNT411-12T | 1.7 | 12 | 60 | 49 | 24 | 74 | 16 | 28 | 25 | 2 | 48 | 122 |
| VNT411-15T | 2.8 | 15 | 75 | 67.5 | 37.5 | 95 | 17 | 32 | 30 | 2.5 | 75 | 170 |
| VNT411-20T | 4.2 | 20 | 100 | 76.5 | 42.5 | 100 | 25 | 36 | 34 | 3 | 85 | 185 |
