Product Details

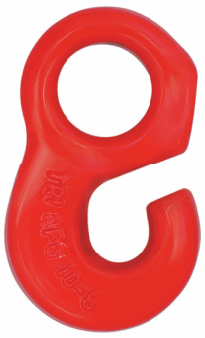

VNT119 G80 Forged Alloy Steel G Hook
Super alloy steel - Quenched and Tempered.
Surface finish: Powder plastified.
Colour code: Red RAL3020/Yellow RAL1003.
Ultimate load is 4 times the Working Load Limit.

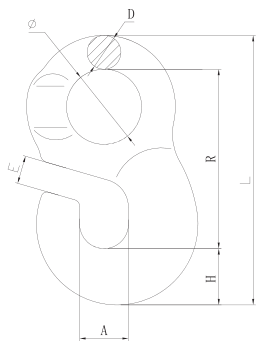

| ITEM NO. | WEIGHT/KG | WLL/T | B.L/T | A±0.5 | D±1 | H±1 | R±1.5 | E±0.5 | L±2 |
| VNT119-10 | 0.51 | 3.15 | 12.6 | 20 | 14 | 22 | 76.5 | 12 | 113 |
| VNT119-13 | 1.3 | 5.3 | 21.2 | 26 | 18 | 29 | 95.5 | 15 | 140.5 |
| VNT119-16 | 1.9 | 8.0 | 32 | 32 | 22 | 35.5 | 117 | 18.4 | 176 |
| VNT119-19 | 2.7 | 12.5 | 50 | 38 | 26 | 43 | 141 | 22.5 | 216.5 |
