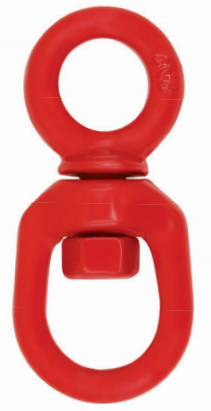

VNT029 G80 G401 Forged Carbon Steel Chain Swivel
Forged carbon steel
Quenched and tempered
Ultimate is 5 times working load limit

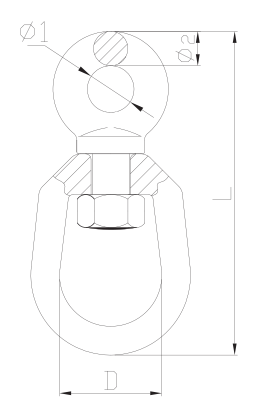

Item No. | Weight/kg | WLL/lbs | B.L/lbs | D±1 | Φ1±1 | Φ2±0.5 | L±3 |
VNT029-1/4 | 0.28 | 850 | 4250 | 15.5 | 7 | 5.3 | 58 |
VNT029-5/16 | 0.55 | 1250 | 6250 | 19.8 | 7.5 | 6.5 | 62.5 |
VNT029-3/8 | 1.34 | 2500 | 12500 | 23.2 | 9.3 | 10 | 77 |
VNT029-1/2 | 2.45 | 3600 | 18000 | 27.5 | 11.5 | 8 | 101 |
VNT029-5/8 | 3.85 | 5200 | 26000 | 36 | 15 | 9.3 | 129 |
VNT029-3/4 | 6.83 | 7200 | 36000 | 42 | 19.8 | 12.5 | 161 |
