VNT010 G80 US Type Swivel Self-Locking Hook
Forged super alloy steel -Quenched and Tempered
Individually proof test at 2.5 times Working Load Limit
Fatigue tested at 1.5 times Working Load Limit for20000 cycles
Breakage test
100% magnaflux crack detection
Surface finish:Powder plastified
Color code:Red RAL3020 / Yellow RAL1003
Position lock lath is Self-Locking when hook is loaded
Ultimate load is 4 times the Working Load Limit.

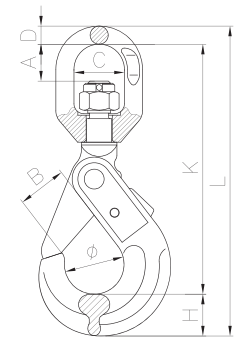

| ITEM NO | WEIGHT/KG | WLL/T | B.L/T | A±0.5 | B±1.5 | C±2 | D±1 | H±1 | K±2 | L±3 | Φ±2 |
| VNT010-7/8 | 1.2 | 2 | 8 | 28 | 35 | 36 | 13 | 29 | 116 | 163 | 42 |
| VNT010-10 | 2 | 3.2 | 12.8 | 35.5 | 42 | 42 | 15.5 | 31 | 218 | 265 | 55 |
| VNT010-13 | 4.5 | 5.4 | 21.6 | 41 | 55 | 50 | 17 | 41 | 261 | 319 | 65 |
| VNT010-16 | 7.36 | 8.2 | 32.8 | 50 | 66 | 70 | 21.5 | 52 | 326 | 399 | 76 |
