Stainless Steel US Type D Shackle with Screw Pin
1. Material: Stainless Steel 316 or Stainless Steel 304.
2. Surface Treatment: highly polished or hot dip galvanized or electric galvanized.
3. Customer Design: our experienced engineer team can developed the products and manufacture in accordance with samples, drawings or only ideas
4. Type: D shackle, bow shackle, long D shackle, twist shackle, wide D shackle, chain shackle, anchor shackle, plate shackle, stamped shackle and so on
5. Packing: Gunny bag/carton, pallet or as your needs.

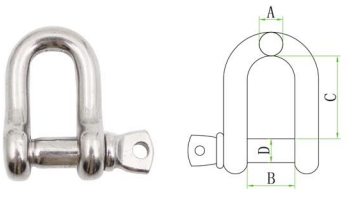

| Size | A | D | B | C | WLL |
| INCH | INCH | INCH | INCH | INCH | LBS |
| 3/16″ | 3/16″ | 1/4″ | 0.38″ | 0.75″ | 300 |
| 1/4″ | 1/4″ | 5/16″ | 0.47″ | 0.88″ | 450 |
| 5/16″ | 5/16″ | 3/8″ | 0.53″ | 1.03″ | 650 |
| 3/8″ | 3/8″ | 7/16″ | 0.66″ | 1.25″ | 1000 |
| 7/16″ | 7/16″ | 1/2″ | 0.75″ | 1.44″ | 1500 |
| 1/2″ | 1/2″ | 5/8″ | 0.81″ | 1.63″ | 2200 |
| 5/8″ | 5/8″ | 3/4″ | 1.05″ | 2″ | 3000 |
| 3/4″ | 3/4″ | 7/8″ | 1.25″ | 2.38″ | 4500 |
| 7/8″ | 7/8″ | 1″ | 1.44″ | 2.81″ | 6000 |
| 1″ | 1″ | 1-1/8″ | 1.69″ | 3.19″ | 8000 |
| 1-1/8″ | 1-1/8″ | 1-1/4″ | 1.81″ | 3.58″ | 10500 |
