Product Details

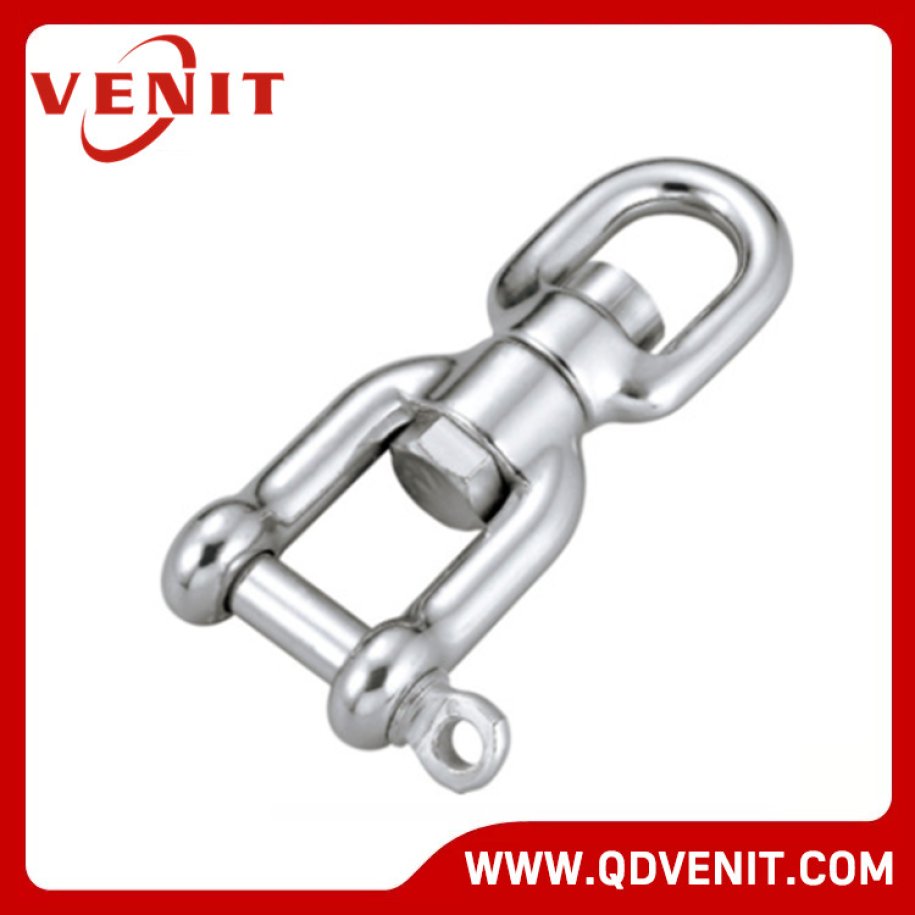

Stainless Steel Swivel Eye & Jaw
1.Material:AISI316 or AISI304
2.Surface:High Polish and Electric Polish
3.Size:6MM-22MM

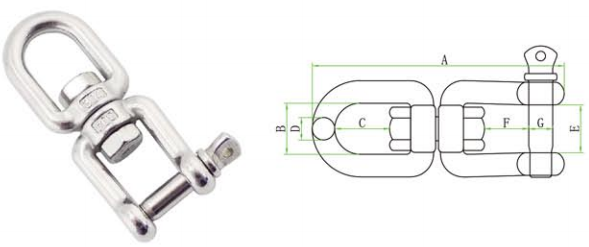

| SIZE(MM) | D(MM) | G(MM) | A(MM) | B(MM) | F(MM) | L3(MM) | B1(MM) | E(MM) |
| 6 | 6 | 6 | 62 | 15 | 11 | 51 | 15 | 12 |
| 8 | 8 | 8 | 90 | 22 | 17 | 71 | 21 | 16 |
| 10 | 10 | 10 | 113 | 27 | 22 | 90 | 24 | 20 |
| 13 | 10 | 13 | 138 | 26 | 26 | 108 | 24 | 26 |
| 16 | 13 | 16 | 173 | 35 | 33 | 136 | 31 | 32 |
| 19 | 16 | 19 | 209 | 41 | 39 | 164 | 38 | 38 |
| 22 | 21 | 22 | 247 | 49 | 45 | 193 | 42 | 44 |
