Product Details

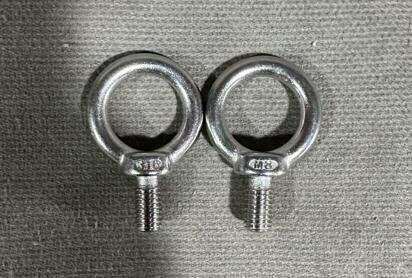

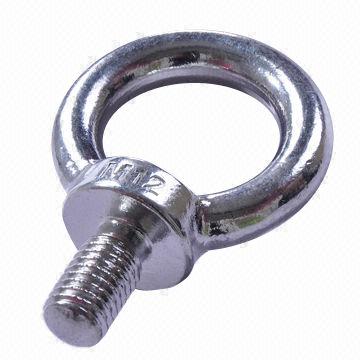

Stainless Steel JIS1168 Eye Bolt
1.Material: Stainless Steel AISI316.
2.Surface Treatment: High Polish.
3.Size: M3-M24.
| SIZE | A | B | C | D | E | WLL KG | WT KG |
| M3 | 7 | 7 | 3 | 9 | 23 | 20 | 0.003 |
| M4 | 10 | 10 | 4 | 11 | 29 | 30 | 0.007 |
| M5 | 13 | 11.5 | 5 | 11.5 | 35 | 40 | 0.013 |
| M6 | 16.5 | 12 | 5 | 14 | 41 | 50 | 0.015 |
| M8 | 20 | 15 | 5.7 | 15 | 47 | 80 | 0.026 |
| M10 | 25 | 19 | 7 | 18 | 58 | 150 | 0.052 |
| M12 | 30 | 22.5 | 9 | 21 | 69 | 220 | 0.094 |
| M16 | 36 | 28 | 11 | 27.5 | 87.5 | 450 | 0.179 |
| M20 | 40 | 32 | 15 | 31 | 101 | 630 | 0.334 |
| M24 | 50 | 41 | 18 | 36 | 122 | 950 | 0.638 |
