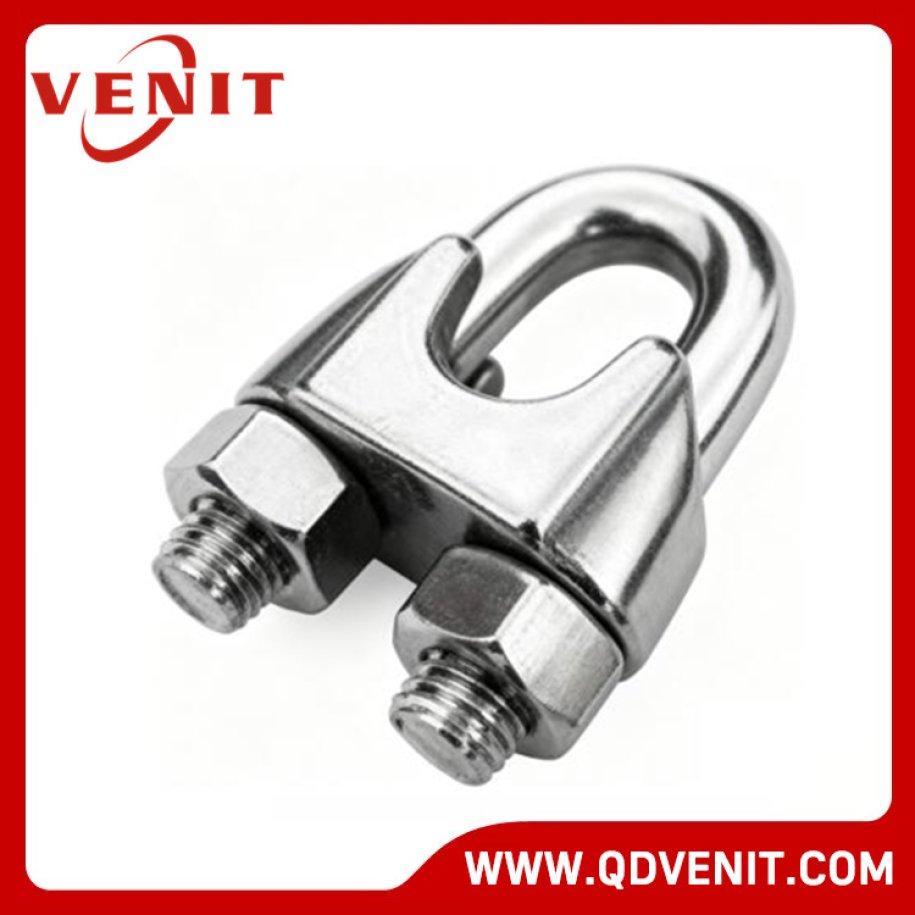

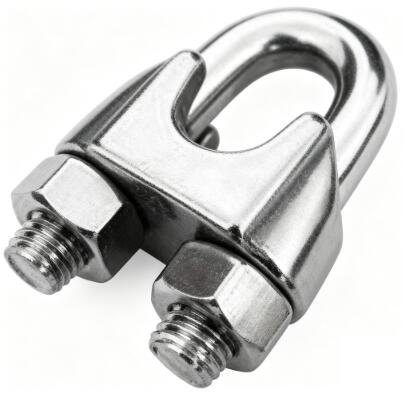

Stainless Steel DIN741 Wire Rope Clip
1. Material: Stainless Steel 316 or Stainless Steel 304.
2. Surface Treatment: highly polished or hot dip galvanized or electric galvanized.
3. Customer Design: our experienced engineer team can developed the products and manufacture in accordance with samples, drawings or only ideas
4. Type: U.S. type wire rope clip, DIN741 wire rope clip, European type wire rope clip and JIS type wire rope clip. and so on
6. Packing: carton, pallet or as your needs
| Rope | A | D1 | L | H |
| MM | MM | MM | MM | MM |
| 2 | 16 | M3 | 10 | 9 |
| 3 | 21 | M4 | 12 | 10 |
| 4 | 22 | M4 | 12 | 10 |
| 5 | 23 | M5 | 13 | 10 |
| 6 | 26 | M5 | 15 | 11 |
| 8 | 30 | M6 | 19 | 15 |
| 10 | 34 | M8 | 22 | 17 |
| 12 | 40 | M10 | 30 | 21 |
| 16 | 50 | M12 | 33 | 26 |
| 19 | 54 | M12 | 38 | 30 |
| 22 | 61 | M14 | 44 | 34 |
| 25 | 65 | M14 | 45 | 37 |
