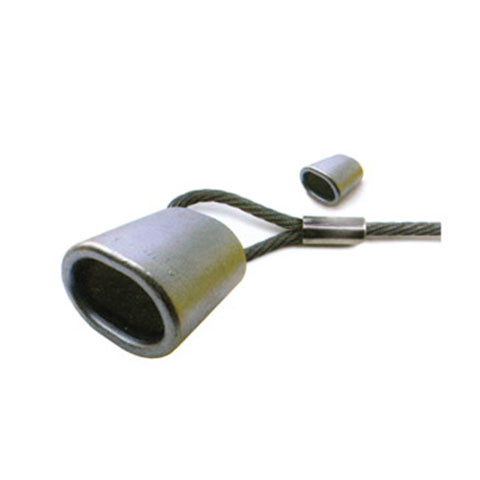

S-506 Steel Oval Sleeves
Specially processed low carbon steel
Note: Steel Oval Sleeves are recommended for use with 6x19 or 6x37, IPS ORxIP(EIP), RRL, FC or IWRC wire rope
Part No. | Rope Size | L | B | C | D | Max. after Swage Dimensions(inch) | Weight |
(inch) | (inch) | (inch) | (inch) | (inch) | lbs/100pcs | ||
SL790516 | 5/16 | 1.25 | 1.08 | 0.81 | 0.19 | 0.77 | 17 |
SL790308 | 3/8 | 1.25 | 1.12 | 0.81 | 0.14 | 0.77 | 13 |
SL790716 | 7/16 | 1.63 | 1.41 | 1.02 | 0.19 | 1.03 | 31 |
SL790102 | 1/2 | 1.63 | 1.44 | 1.02 | 0.16 | 1.03 | 27 |
SL790916 | 9/16 | 2.25 | 1.72 | 1.23 | 0.23 | 1.29 | 63 |
SL790508 | 5/8 | 2.25 | 1.84 | 1.28 | 0.2 | 1.29 | 54 |
SL790304 | 3/4 | 2.63 | 2.16 | 1.52 | 0.23 | 1.55 | 90 |
SL790708 | 7/8 | 2.88 | 2.5 | 1.75 | 0.27 | 1.8 | 126 |
SL791000 | 1 | 3.06 | 2.84 | 2 | 0.33 | 2.05 | 187 |
SL791104 | 11/4 | 4.06 | 3.5 | 2.5 | 0.38 | 2.56 | 384 |
