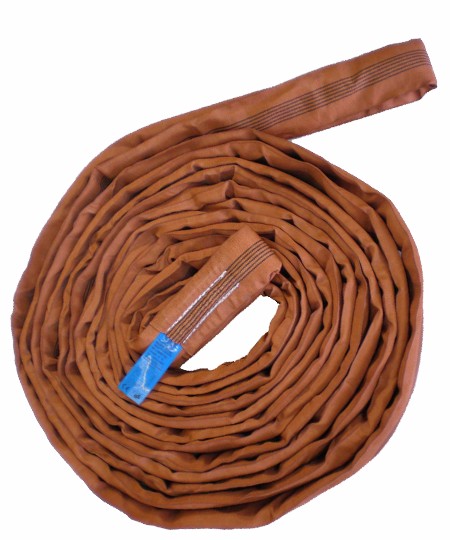

6T Duplex Polyester Endless Round Sling
| Type -Polyester Round Sling Technical specifications -Colour coded according to EN1492-2 & AS4497 -Capacity stripes; each stripe is equal to 1 tonne capacity. -The safe working load is clearly and continuously printed on the sleeve. -Extra strong PU-impregnated webbing of the sleeve, which does not allow dirt to enter. -Each sling is packed in plastic with CE declaration of conformity or Test Certificate. Characteristics: -Low Elongation. -Extremely wear-resistant. Norms -According to Machine EN1492-2 & AS4497 -Safety Factor: 7:1 |
 | |
 | Item | Color coded according to EN1492-2 | Working Load Limit with 1 round sling | Working Load Limit with 2 round slings | |||||||||
| Straight lift | Chocked lift | 0-7 |  | Straight lift up to 45 | Choked lift up to 45 | Straight lift 45-60 | Choked lift 45-60 | ||||||
| 0-7 | 7-45 | 45-60 | 45-60 | ||||||||||
 |  |  |  |  |  |  |  |  |  |  | |||
| 1.0 | 0.8 | 2.0 | 1.4 | 1.0 | 0.7 | 0.5 | 1.4 | 1.12 | 1.0 | 0.8 | |||
| VNTRS-1T | WLL1T | 1.000 | 800 | 2.000 | 1.400 | 1.000 | 700 | 500 | 1.400 | 1.120 | 1.000 | 800 | |
| VNTRS-2T | WLL 2T | 2.000 | 1.600 | 4.000 | 2.800 | 2.000 | 1.400 | 1.000 | 2.800 | 2.240 | 2.000 | 1.600 | |
| VNTRS-3T | WLL 3T | 3.000 | 2.400 | 6.000 | 4.200 | 3.000 | 2.100 | 1.500 | 4.200 | 3.360 | 3.000 | 2.400 | |
| VNTRS-4T | WLL 4T | 4.000 | 3.200 | 8.000 | 5.600 | 4.000 | 2.800 | 2.000 | 5.600 | 4.480 | 4.000 | 3.200 | |
| VNTRS-5T | WLL 5T | 5.000 | 4.000 | 10.000 | 7.000 | 5.000 | 3.500 | 2.500 | 7.000 | 5.600 | 5.000 | 4.000 | |
| VNTRS-6T | WLL 6T | 6.000 | 4.800 | 12.000 | 8.400 | 6.000 | 4.200 | 3.000 | 8.400 | 6.720 | 6.000 | 4.800 | |
| VNTRS-8T | WLL 8T | 8.000 | 6.400 | 16.000 | 11.200 | 8.000 | 5.600 | 4.000 | 11.200 | 8.960 | 8.000 | 6.400 | |
| VNTRS-10T | WLL 10T | 10.000 | 8.000 | 20.000 | 14.000 | 10.000 | 7.000 | 5.000 | 14.000 | 11.200 | 10.000 | 8.000 | |
| VNTRS-12T | WLL 12T | 12.000 | 9.600 | 24.000 | 16.800 | 12.000 | 8.400 | 6.000 | 16.800 | 13.400 | 12.000 | 9.600 | |
| Code | W.L.L. | Color | Diameter | Min. length | Max. length |
| Tons | mm | m | m | ||
| VNTRS-1T | 1.0 |  | 19 | 0.5 | 80 |
| VNTRS-2T | 2.0 |  | 25 | 0.5 | 80 |
| VNTRS-3T | 3.0 |  | 28 | 0.5 | 80 |
| VNTRS-4T | 4.0 |  | 32 | 0.5 | 80 |
| VNTRS-5T | 5.0 |  | 36 | 0.5 | 80 |
| VNTRS-6T | 6.0 |  | 38 | 1.0 | 80 |
| VNTRS-8T | 8.0 |  | 43 | 1.0 | 80 |
| VNTRS-10T | 10.0 |  | 48 | 2.0 | 80 |
| VNTRS-12T | 12.0 | | 53 | 2.0 | 80 |
| VNTRS-15T | 15.0 | | 60 | 2.0 | 80 |
| VNTRS-20T | 20.0 | | 70 | 2.0 | 80 |
| VNTRS-30T | 30.0 | | 86 | 2.0 | 80 |
| VNTRS-50T | 50.0 | | 119 | 2.0 | 80 |
| VNTRS-100T | 100.0 | | 140 | 2.0 | 80 |
| VNTRS-300T | 300.0 | | 280 | 2.0 | 80 |
| VNTRS-500T | 500.0 | | 350 | 2.5 | 80 |
| VNTRS-800T | 800.0 | | 426 | 2.5 | 80 |
| VNTRS-1000T | 1000.0 | | 476 | 3.0 | 80 |
