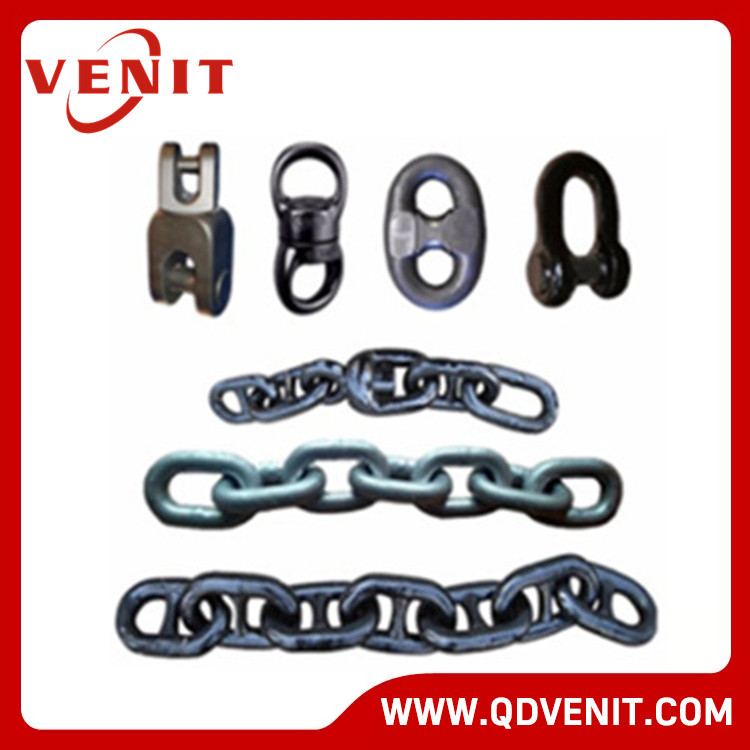

Black Painted Flash Butt Welded Anchor Chain
| Diameter | CHAIN LINK SIZE | U2 | U3 | APPROX. | |||
| U2 STUD LINK CHAIN | U3 STUD LINK CHAIN | WEIGHT | |||||
| OUTSIDE | OUTSIDE | PROOF | BREAKING | PROOF | BREAKING | 27.5M | |
| LENGTH | WIDTH | LOAD | LOAD | LOAD | LOAD | ||
| MM | MM | MM | KN | KN | KN | KN | KG |
| 12.5 | 75 | 45 | 66 | 92 | 92 | 132 | 98 |
| 14 | 84 | 50.4 | 82 | 116 | 116 | 165 | 119 |
| 16 | 96 | 57.6 | 107 | 150 | 150 | 216 | 156 |
| 17.5 | 105 | 63 | 127 | 179 | 179 | 256 | 186 |
| 19 | 114 | 68.4 | 150 | 211 | 211 | 301 | 230 |
| 20.5 | 123 | 73.8 | 175 | 244 | 244 | 349 | 260 |
| 22 | 132 | 79.2 | 200 | 280 | 280 | 401 | 300 |
| 24 | 144 | 86.4 | 237 | 332 | 332 | 476 | 370 |
| 26 | 156 | 93.6 | 278 | 389 | 389 | 556 | 431 |
| 28 | 168 | 100.8 | 321 | 449 | 449 | 642 | 496 |
| 30 | 180 | 108 | 368 | 514 | 514 | 735 | 564 |
| 32 | 192 | 115.2 | 417 | 583 | 583 | 833 | 635 |
| 34 | 204 | 122.4 | 468 | 655 | 655 | 937 | 712 |
| 36 | 216 | 129.6 | 523 | 732 | 732 | 1050 | 800 |
| 38 | 228 | 136.8 | 581 | 812 | 812 | 1160 | 887 |
| 40 | 240 | 144 | 640 | 896 | 896 | 1280 | 1032 |
| 42 | 252 | 151.2 | 703 | 981 | 981 | 1400 | 1084 |
| 44 | 264 | 158.4 | 769 | 1080 | 1080 | 1540 | 1197 |
| 46 | 276 | 165.6 | 837 | 1170 | 1170 | 1680 | 1310 |
| 48 | 288 | 172.8 | 908 | 1270 | 1270 | 1810 | 1438 |
| 50 | 300 | 180 | 981 | 1370 | 1370 | 1960 | 1546 |
| 52 | 312 | 187.2 | 1060 | 1480 | 1480 | 2110 | 1661 |
| 54 | 324 | 194.4 | 1140 | 1590 | 1590 | 2270 | 1791 |
| 56 | 336 | 201.6 | 1220 | 1710 | 1710 | 2430 | 1926 |
| 58 | 348 | 208.8 | 1290 | 1810 | 1810 | 2600 | 2086 |
| 60 | 360 | 216 | 1380 | 1940 | 1940 | 2770 | 2249 |
| 62 | 372 | 223.2 | 1470 | 2060 | 2060 | 2940 | 2361 |
| 64 | 384 | 230.4 | 1560 | 2190 | 2190 | 3130 | 2516 |
| 66 | 396 | 237.6 | 1660 | 2310 | 2310 | 3300 | 2676 |
| 68 | 408 | 244.8 | 1750 | 2450 | 2450 | 3500 | 2885 |
| 70 | 420 | 252 | 1840 | 2580 | 2580 | 3690 | 3010 |
Diameter | CHAIN LINK SIZE | BM2 |
| BM3 |
| APPROX. | |
U2 OPEN LINK CHAIN | U3 OPEN LINK CHAIN | WEIGHT | |||||
27.5M | |||||||
OUTSIDE | OUTSIDE | PROOF | BREAKING | PROOF | BREAKING | KG | |
LENGTH | WIDTH | LOAD | LOAD | LOAD | LOAD | ||
MM | MM | MM | KN | KN | KN | KN | |
12.5 | 75 | 45 | 41.2 | 82.6 | 56.4 | 112.8 | 85.41 |
14 | 84 | 50.4 | 51 | 101.9 | 70.76 | 141.51 | 106.55 |
16 | 96 | 57.6 | 66.2 | 132.3 | 92.42 | 184.83 | 139.43 |
17.5 | 105 | 63 | 78.89 | 157.78 | 110.55 | 221.1 | 178.35 |
19 | 114 | 68.4 | 93.6 | 187.2 | 130.32 | 260.64 | 217.68 |
20.5 | 123 | 73.8 | 108.64 | 217.27 | 151.7 | 303.42 | 229.14 |
22 | 132 | 79.2 | 125.4 | 250.9 | 174.4 | 349.4 | 264.49 |
24 | 144 | 86.4 | 149.9 | 298.9 | 207.9 | 415.8 | 341.82 |
26 | 156 | 93.6 | 175.4 | 350.8 | 244 | 488 | 369.94 |
28 | 168 | 100.8 | 203.8 | 406.7 | 283 | 566 | 427.04 |
30 | 180 | 108 | 234.2 | 467.5 | 324.9 | 649.8 | 490.98 |
32 | 192 | 115.2 | 265.6 | 531.2 | 369.6 | 739.3 | 559.65 |
34 | 204 | 122.4 | 299.9 | 599.8 | 417.3 | 834.6 | 671.52 |
36 | 216 | 129.6 | 336.1 | 672.3 | 467.8 | 935.7 | 707.85 |
38 | 228 | 136.8 | 374.4 | 748.7 | 521.3 | 1042.5 | 788.98 |
40 | 240 | 144 | 414.5 | 829.1 | 577.6 | 1155.2 | 869.36 |
42 | 252 | 151.2 | 457.7 | 915.3 | 636.8 | 1273.6 | 959.3 |
44 | 264 | 158.4 | 502.7 | 999.6 | 698.9 | 1398 | 1111.25 |
46 | 276 | 165.6 | 548.8 | 1097.6 | 763.9 | 1527.8 | 1152.07 |
48 | 288 | 172.8 | 597.8 | 1195.6 | 831.7 | 1663.5 | 1256.26 |
50 | 300 | 180 | 648.8 | 1239.6 | 902.5 | 1805 | 1360.41 |
52 | 312 | 187.2 | 697.63 | 1395.26 | 976.14 | 1952.28 | 1485.61 |
54 | 324 | 194.4 | 752.33 | 1504.66 | 1052.68 | 2105.36 | 1648.08 |
56 | 336 | 201.6 | 809.09 | 1618.18 | 1132.1 | 2264.2 | 1715.97 |
58 | 348 | 208.8 | 867.91 | 1735.82 | 1214.4 | 2428.8 | 1844.5 |
60 | 360 | 216 | 928.8 | 1857.6 | 1299.6 | 2599.2 | 1973.29 |
62 | 372 | 223.2 | 991.75 | 1983.5 | 1387.68 | 2775.36 | 2101.56 |
64 | 384 | 230.4 | 1056.77 | 2113.54 | 1478.66 | 2957.32 | 2298.47 |
66 | 396 | 237.6 | 1123.85 | 2247.7 | 1572.52 | 3145.04 | 2398.1 |
68 | 408 | 244.8 | 1192.99 | 2385.98 | 1669.26 | 3338.52 | 2522.88 |
70 | 420 | 252 | 1264.2 | 2528.4 | 1768.9 | 3537.8 | 2697.65 |
