Inflatable Rubber Airbag

Inflatable Rubber Airbag

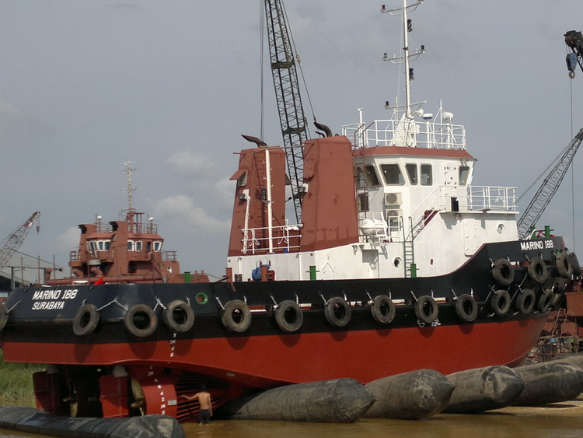

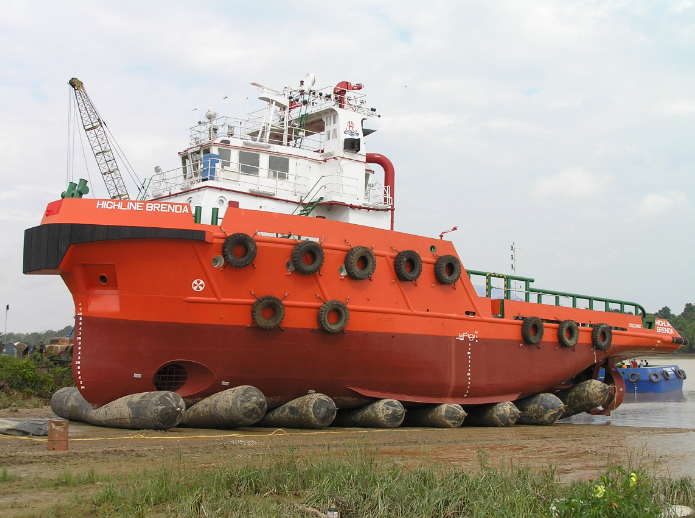

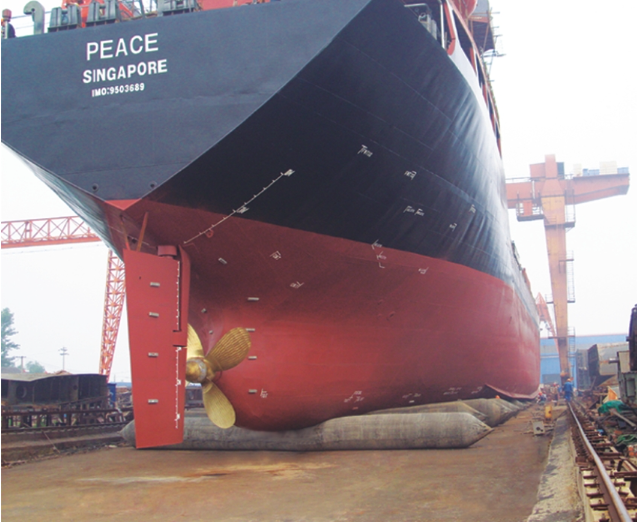

The rubber inflatable airbag is a flexible heavy load carrier designed according to the principle of rolling wood. It is widely used in the fields of caisson jacking, transportation, and ship launching and launching in port construction. Rubber inflatable airbags are widely used in ship launching and launching. Launching ships have developed from flat-bottomed ships weighing tens of tons to large.

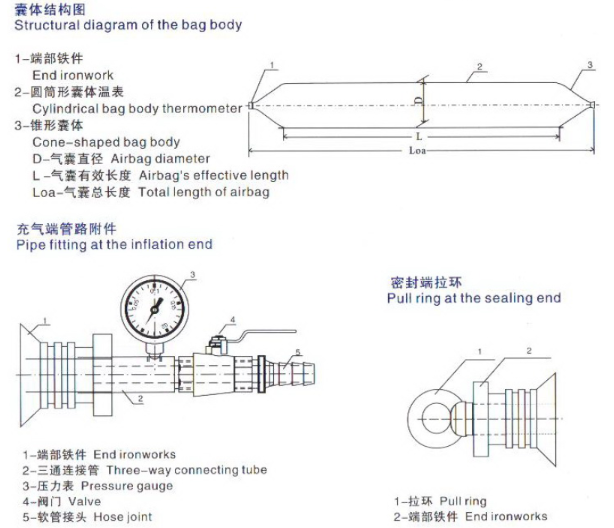

Airbag structure:

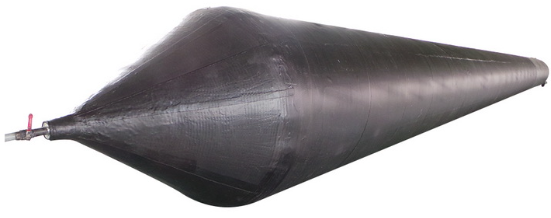

The whole-wrapped marine airbag is composed of two parts: a mouth and a body (conical and cylindrical). The bladder nozzle is made of Q235 hot-dip galvanizing, which has good seawater corrosion resistance. The tapered balloon wraps the mouth of the balloon, and forms a whole with the cylindrical balloon through a seamless winding process, which ensures the airbag's airtightness, bearing capacity and safety performance.

To the skeleton material of the airbag is made of nylon cord fabric used to produce automobile tires. The inner layer of the airbag has a rubber layer with good airtightness, which is used to seal the compressed gas when the bag body is subjected to high pressure, and the outer layer has a rubber layer with high wear resistance, flexibility resistance, corrosion resistance and aging resistance. Therefore, the airbag has greatly improved its tear strength, stretchability, service life and other properties during use.

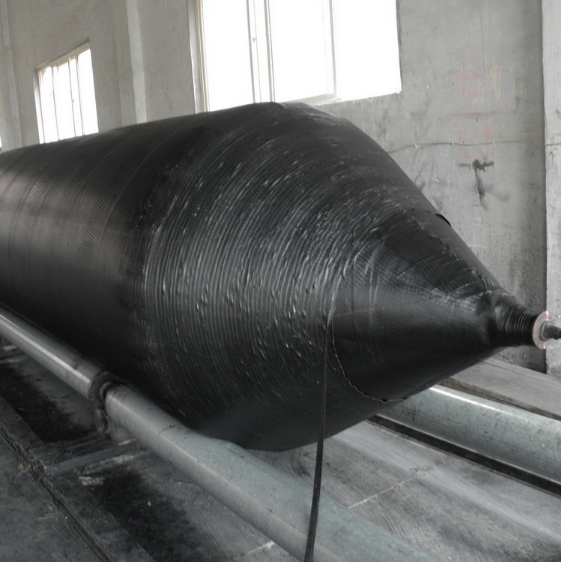

Airbag process characteristics-overall winding manufacturing process

The airbags of QINGDAO VENIT are made by the whole winding process. Compared with the previous docking process, the integral winding process is more innovative in terms of manufacturing techniques. The interface of the traditional docking airbag may burst due to unsupported pressure under heavy pressure, while the integral winding airbag uses one layer. A layer of glue-type winding manufacturing method, so that the airbag made is balanced no matter where the force is received, so that the bearing capacity of the airbag becomes larger, and the air tightness is also good, so the safety of the airbag is greatly improved.

1.Excellent raw materials: The skeleton material of QINGDAO VENIT airbag is made of 94 nylon curtains in a length of 10 cm, and the inner rubber is made of soft, high elasticity, high adhesion, high air tightness natural rubber and EPDM And other synthetic rubber, the outer layer of rubber is made of hard, high toughness, high wear resistance, anti-aging natural rubber and styrene-butadiene and butadiene-butadiene synthetic rubber. Adhesive uses high-strength rubber special adhesive to avoid air bag delamination and blistering.

2.Advanced technology: QINGDAO VENIT overall winding technology adopts the gradient cross winding between layers.The number of layers of the capsule head is more than that of the capsule body. The pressure resistance, air tightness and safety of the airbag are further improved and greatly improved. The carrying capacity of the airbag.

3.Precise workmanship and strict control: QINGDAO VENIT airbag body has a smooth and round surface, clear entanglement of the bag head, a firm connection between the bag head and the air bag mouth, and good air tightness of the bag mouth.Every link from raw material procurement to production to delivery has strict quality control to ensure that each airbag is qualified before leaving the factory.

In summary, QINGDAO VENIT adopts advanced production technology, purchases excellent raw materials, rigorous workmanship, and produces airbags under strict quality control.The bearing capacity of the airbags produced under strict quality control is further strengthened, which can completely solve the pressure and deformation of the airbags in harsh environments.Load bearing problems when rolling.
